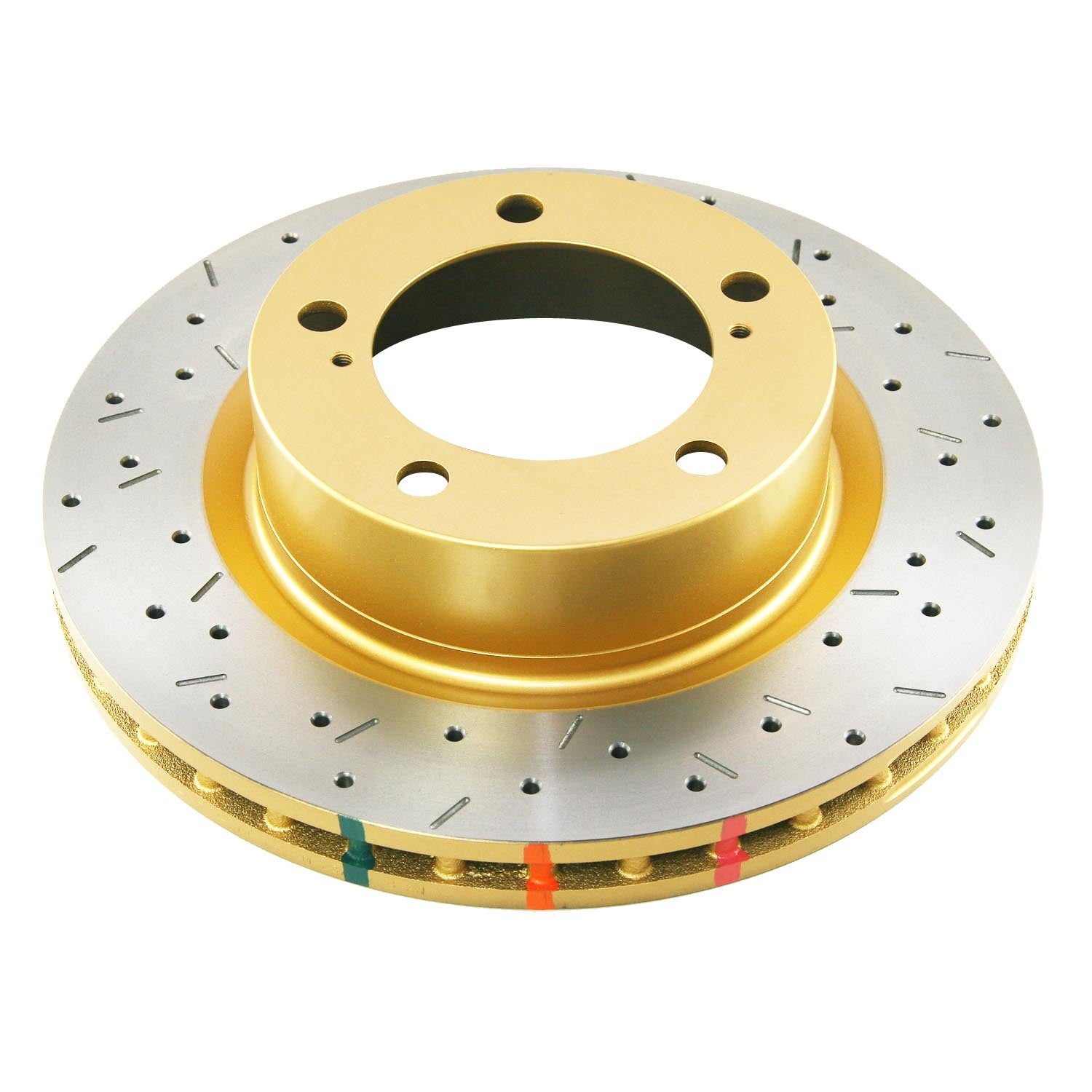

4000XS Series Drilled/Slotted Gold 2x Rear Rotors (Landcruiser 200 08+/LX 08+/Tundra 03+)
The 4000XS is a premium cross-drilled and slotted pattern designed to work in conjunction with DBA's patented Kangaroo Paw ventilation system.
The XS pattern increases the number of out-gassing exit points to allow brake pad friction gasses to escape through. This increases the consistency and effectiveness of every brake stop.
These rotors also feature DBA's proprietary XG-150 high carbon alloyed iron and Thermal Stability Profiling (TSP) which prolongs the service life of the rotor.
DBA's revolutionary universal drill and slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.
For the spirited driver or performance modified street vehicle, the XS cross-drilled and slotted design is the best option.
- Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
- Increased number of out-gassing exit points for brake pad friction gasses to escape through increases the consistency and effectiveness of every brake stop.
- Universal drill and slot design eliminates the need for left and right discs
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
- Special formulation designed to respond to DBA's TSP process.
- Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
- When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.
- Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
- Diameter (mm): 345
- Thickness (mm): 18
- Height (mm): 76.5
- Centre Hole Diameter (mm): 115
- Minimum Thickness (mm): 16
- Drum Maximum Diameter (mm): N/A
- Wheel/Stud Holes: 5
- 2x Rotors
- 2008+ Lexus LX570 URJ201R 4 Door SUV Full-Size
- 2015+ Lexus LX450D VDJ201R 4 Door SUV Full-Size
- 2008+ Toyota Landcruiser URJ202R/UZJ200R/VDJ200R 4 Door SUV Full-Size
- 2003+ Toyota Tundra UCK41L/USK56L//USK57L 2 Door Utility/4 Door Utility
