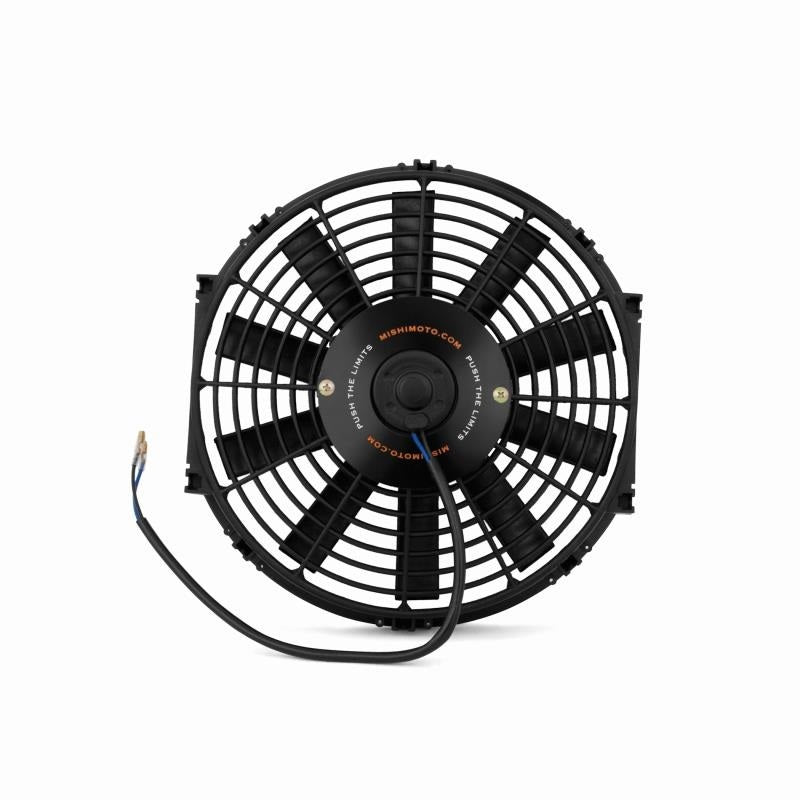

Slim Electric Fan 14"

This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

• High-flow fan provides 1300 cfm of airflow
• Universal fitment

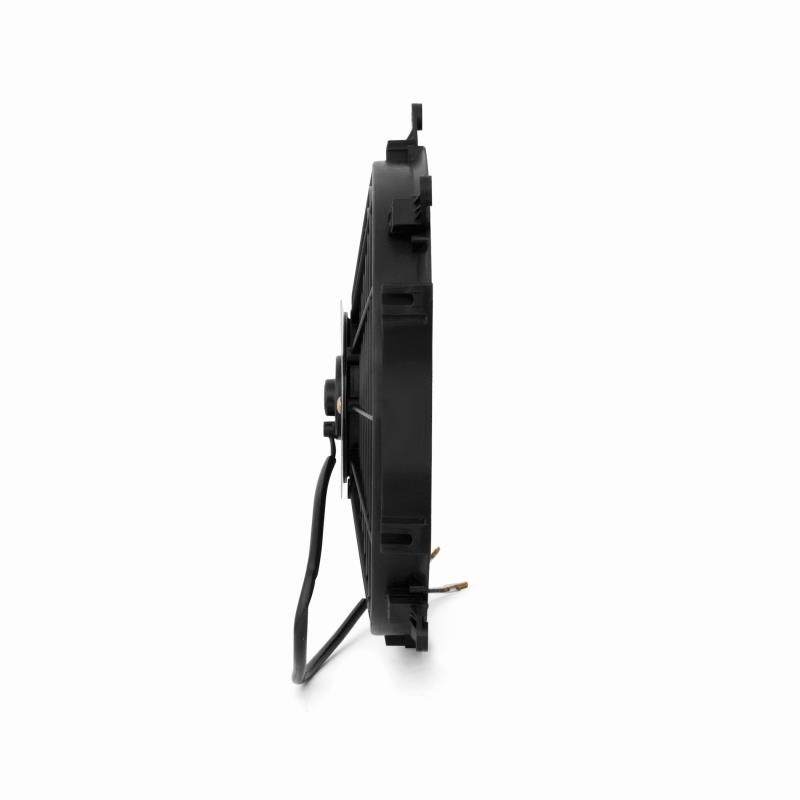

• Compact design with a diameter of 14" and an overall thickness of only 2.65" provides increased engine bay space
• Mishimoto Lifetime Warranty
• Type of Ends - Female Snap-Plug Terminal
• Material - Plastic
• Air Temp While Tested - 72°F
• Color - Black
• Normal Current (amps) - 7.8
• Volts - 12
• Housing Diameter - 14.75
• Blade Diameter - 326
• Overall Thickness - 2.5"
• Reverse - No
• Blade Style - Straight
• Inrush Current (amps) - 15.1
• # of Blades - 10
• Fan RPM - 2200
• Fan Diameter - 14
• Overall Depth - 67.5
• CFM - 1300
• Mishimoto Fan
• Mishimoto Lifetime Warranty
• Mishimoto Fan
• Limited Lifetime Warranty
• Universal Part

CFM
1300

Fan Diameter
328mm

Fan RPM
2200

Number of Blades
10

Inrush Current (Amps)
15.1

Blade count
10

Blade style
Straight

Motor can run in reverse
No

Type of ends
Loose

Blade diameter
12.875

housing diameter
14.75

Normal Current (Amps)
7.8

Voltage
12

Air Temp While Tested
72°F
