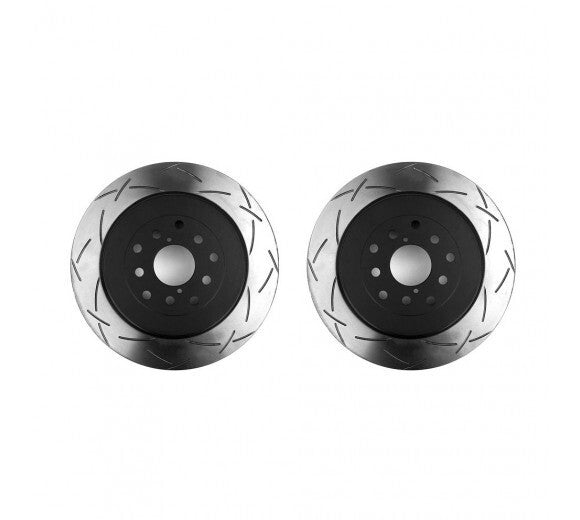

Street Series 2x T2 Slotted Rear Rotors (STi 02-07/Liberty GT STi 06-09)
Important: Please see notes in compatibilty section regarding vehicle fitment.
DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.
The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.
DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.
We recommend the T2 slot design for more intensive braking applications.
|"Kangaroo Paw* – 144 diamond and tear drop pillar ventilation system"||Increased surface area resulting in greater heat dissipation||Minimises brake fade and increases braking effectiveness|
|Increased surface area resulting in greater heat dissipation|
|CBN (Cubic Boron Nitride) machine turned||Reduced DTV (Disc thickness variation) and parallelism||
Less occurrence of brake shudder or brake pedal ‘judder’
|MINIMUM THICKNESS [MM]||18|
|INNER DIAMETER [MM]||58|
|NUMBER OF HOLES||10|
|PITCH CIRCLE Ø [MM]||100|
|Australia||SUBARU||IMPREZA, 2.0 WRX STi GD||12/2002-12/2007||2.0 STi-All-wheel Drive-Petrol (2-Piston Brembo)|
|Australia||SUBARU||IMPREZA, 2.5 WRX STi GD||10/2005-12/2007||2.5 STi-All-wheel Drive-Petrol (2-Piston Brembo)|
|Australia||SUBARU||LIBERTY, 2.5 STI AWD||9/2006-12/2009||2.5 STI AWD-All-wheel Drive-Petrol (2-Piston Brembo)|
