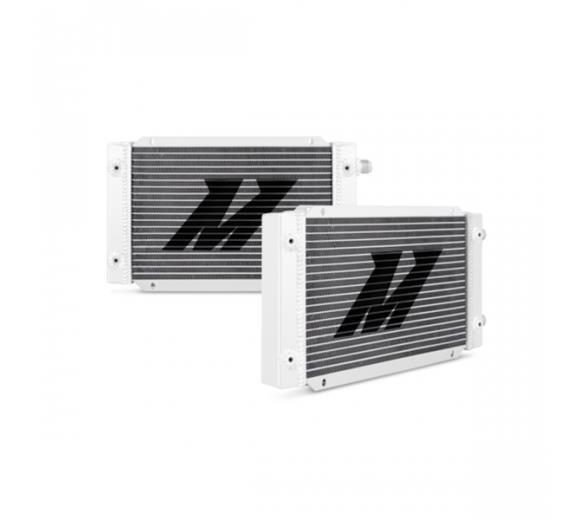

19-Row Dual Pass Oil Cooler - Silver

Mishimoto has developed a brand new Universal Dual Pass Fluid Cooler for enthusiasts that demand the most from their vehicles. Keeping oil temperatures in control is crucial for a successful day at the track, street or strip. High engine oil temperatures can promote engine wear and lead to serious internal engine damage. The Mishimoto Dual Pass Cooler is constructed from high pressure internal tubes rated to 120psi and is built to handle the most extreme conditions.

The Mishimoto Dual Pass Cooler offers an extremely large surface cooling area thanks to 8mm external fins so you can concentrate more on driving and less on temperatures. These coolers also possess the ability to cool all of your automotive fluids such as transmission and power steering fluid. As with all of our products the Mishimoto Dual Pass Cooler is protected with the Mishimoto Lifetime Warranty.

• 19-row stacked-plate oil cooler for optimal fluid temperature reduction
• Extends life of high-wear engine components
• Minimal pressure loss
• Available in Sleek Silver, Stealth Black, or Bold Gold
• Mishimoto Lifetime Warranty
• Material - 6061 Aluminum
• Core Height - 7.8"
• Rows - 19, dual pass
• Cooler Contruction - Tube-and-Fin
• Core Thickness - 1.42"
• Core Length - 11.81"
• Increase In Oil Capacity - 0.79
• Overall Height - 14.8"
• Overall Length - 8.27"
• Overall Width - 1.77"
• Core Size - 11.81" x 7.80"
• Inlet - -10AN
• Outlet - -10AN
• Mishimoto Oil Cooler
• Mishimoto Lifetime Warranty
• Mishimoto Oil Cooler
• Mishimoto Lifetime Warranty
• Universal Part

Rows
19, dual pass

Overall size
14.80" x 8.27" x 1.77"

Core
11.81" x 7.80"

Core thickness
1.42"

Inlet
-10AN

Outlet
-10AN

Construction
Tube & fin w/ cut & weld end tanks

Fluid Capacity
0.79 Quarts (0.75L)
