Baffled Oil Catch Can BMW 335i/335Xi/135i 11-13
The Mishimoto BMW N55 Baffled Oil Catch Can is designed and engineered to reduce carbon build-up, a common issue with the direct fuel injection N55 engines. The Mishimoto BMW N55 catch can kit uses proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can, with its bronze filter and internal baffle, to better separate the oil from the crankcase vapors.
The engineers at Mishimoto designed a CNC-machined lid that features large inlet and outlet ports in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil blow-by and help maintain proper octane levels to reduce potential detonation.

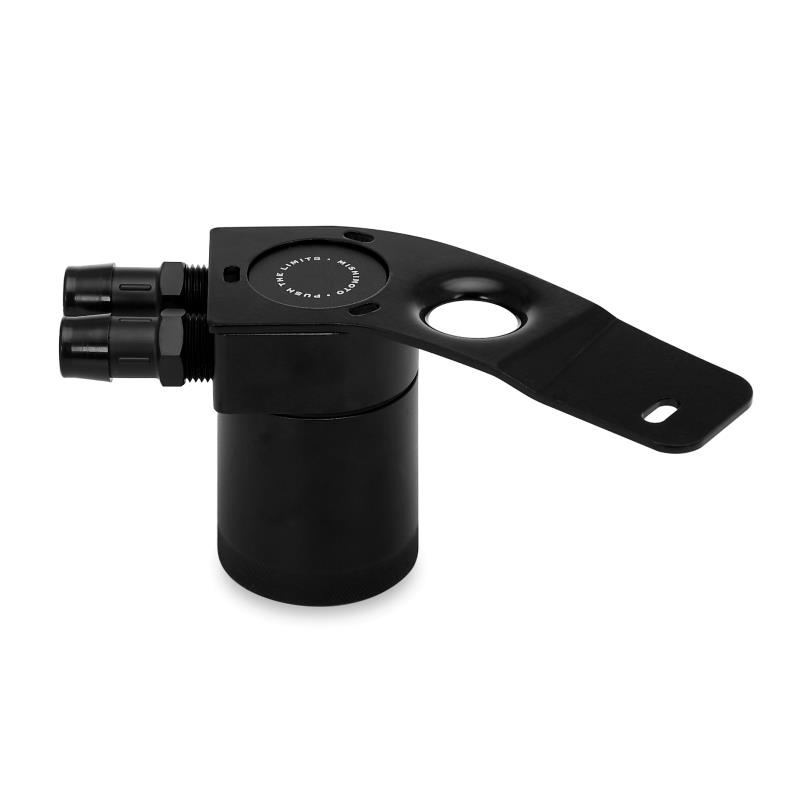

The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct-fit mounting bracket that not only is extremely easy to install, but also mounts the can in a serviceable location! Two plastic, 3/4” barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!
Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.
- Direct fit for 2011-2013 BMW 335I/335XI/135I

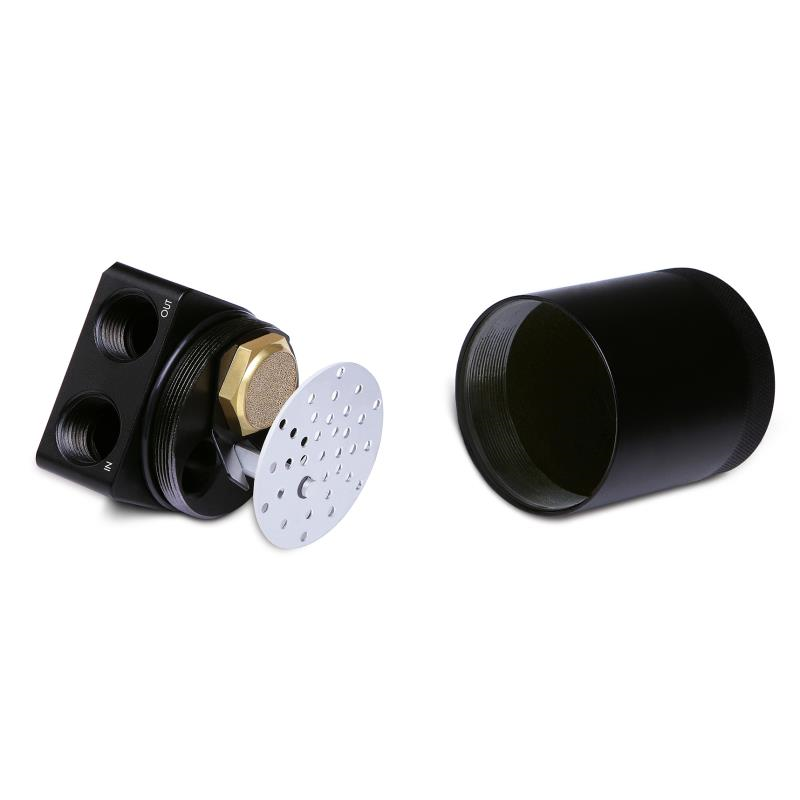

- Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
- Application-specific bracket mounts the can in a serviceable location
- Billet 6061 aluminium sealed can
- Defends intercooler, intake system, and VANOS system from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Internal air diverter increases air turbulence to improve oil separation
- Filters and can are fully serviceable
- Mishimoto Lifetime Warranty
- Overall Height: 96.5mm
- Overall Diameter: 63.5mm
- Inlet: 3/4"
- Outlet: 3/4"
- Drain Plug Thread Size: 3/8" NPT
- Capacity: 88ml
- Assembled Weight: 0.9lbs
- Engine Codes: N55
- Chassis Codes: E82 / E88 / E90 / E92 / E93
- Material: 6061 Aluminum
- Baffled: True
- Install Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
- Note: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
- (1) Compact Baffled Oil Catch Can
- (1) Application-Specific Mounting Bracket
- (2) Direct-Fit Hoses
- (2) 3/4" Aluminium Barbed Fittings
- Mounting Hardware
- Mishimoto Lifetime Warranty
- 2011-2013 BMW 135i Coupe
- 2011-2013 BMW 135i Convertible
- 2011 BMW 335i/xi Sedan
- 2011-2013 BMW 335i/xi Coupe
- 2011-2013 BMW 335i/xi Convertible
