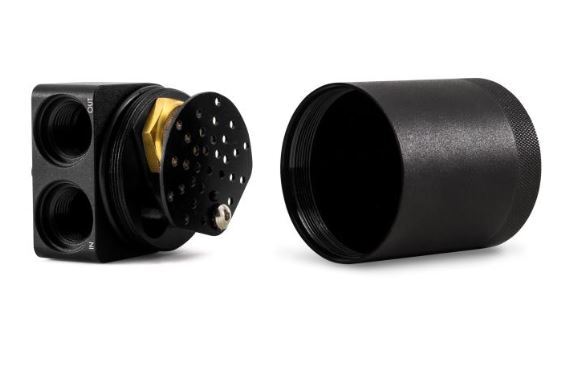

Baffled Oil Catch Can, CCV Side BMW N20/N26

The Mishimoto BMW N20/N26 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with the direct fuel injection N20 and N26 engines. The Mishimoto BMW N20/N26 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil-blowby and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two plastic, 3/4" barb fittings connect the hoses to the can. Like all of our products, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

• Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
• Mishimoto Lifetime Warranty
• Application-specific bracket mounts the can in a serviceable location
• Direct fit hoses allow for installation with no modification
• Application-specific lid designed so fitting size matches CCV line size
• Billet 6061 aluminum sealed can
• Defends intercooler, intake system, and VANOS system from oil blow-by
• Helps maintain proper octane levels to reduce potential detonation
• Filters and can are fully serviceable
• Internal air diverter turbulates air longer to improve oil separation
• 2014-2016 228i / 228ix
• 2012-2017 320i / 320ix
• 2012-2016 328i / 328ix
• 2013-2016 428i / 428ix
• N20
• N26
• F22
• F30
• F31
• F32
• F33
• F36
• 6061 Aluminum
• After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
• BK
• Yes
• (2) Application-Specific Mounting Brackets
• (1) Black, Anodized 6061 Aluminum Catch Can
• (2) Direct Fit Hoses, Black
• (2) Plastic Barbed Fittings
• (1) Air Diverter
• (1) Internal Baffle & Rod
• (1) 3/8" NPT Plug
• (1) Large O-Ring
• Mounting Hardware Mishimoto Lifetime Warranty
• (2) Application-Specific Mounting Brackets
• (1) Black, Anodized 6061 Aluminum Catch Can
• (2) Direct Fit Hoses, Black
• (2) Plastic Barbed Fittings
• (1) Air Diverter
• (1) Internal Baffle & Rod
• (1) 3/8" NPT Plug
• (1) Large O-Ring
• Mounting Hardware Mishimoto Lifetime Warranty
• 2014-2016 228i / 228ix
• 2012-2017 320i / 320ix
• 2012-2016 328i / 328ix
• 2013-2016 428i / 428ix
• N20
• N26
• F22
• F30
• F31
• F32
• F33
• F36
