Baffled Oil Catch Can, CCV Side BMW N54 07-10

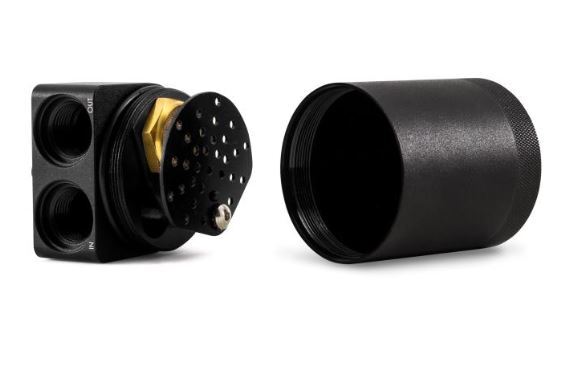

The Mishimoto BMW N54 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with the direct fuel injection N54 engines. The Mishimoto BMW N54 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil blow-by and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two plastic, 3/4” barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

• Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
• Mishimoto Lifetime Warranty
• Application-specific bracket mounts the can in a serviceable location
• Direct fit hoses allow for installation with no modification to engine cover
• Application-specific lid designed so fitting size matches CCV line size
• Billet 6061 aluminum sealed can
• Defends intercooler, intake system, and VANOS system from oil blow-by
• Helps maintain proper octane levels to reduce potential detonation
• Filters and can is fully serviceable
• Internal air diverter turbulates air longer to improve oil separation
• Overall Height - 3.8"
• Overall Diameter - 2.5"
• Inlet - 3/8" NPT
• Outlet - 3/8" NPT
• Drain Plug Thread Size - 3/8" NPT
• Capacity - 2 fl oz
• Assembled Weight - 0.9 lbs
• Material - Billet 6061 aluminum
• (1) Application-Specific Mounting Bracket
• (1) Black, Anodized 6061 Aluminum Catch Can
• (2) Direct Fit Hoses, Black
• (2) Plastic Barbed Fittings
• (1) Air Diverter
• (1) Internal Baffle & Rod
• (1) 3/8" NPT Plug
• (1) Large O-Ring
• Mounting Hardware
• Mishimoto Lifetime Warranty
• 2008–2010 BMW E82 135i
• 2011 BMW E82 1M
• 2006–2010 BMW E90 335i/335xi
• 2006–2010 BMW E91 335i/335xi
• 2007–2010 BMW E92 335i/335xi
• 2007–2010 BMW E93 335i/335xi
• N54
• E82 / E90 / E91 / E92 / E93

Install Torque Specs - 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Note - After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle
