Baffled Oil Catch Can, PCV Side Mazda 3 MPS 07-13
Regular price
$549.95

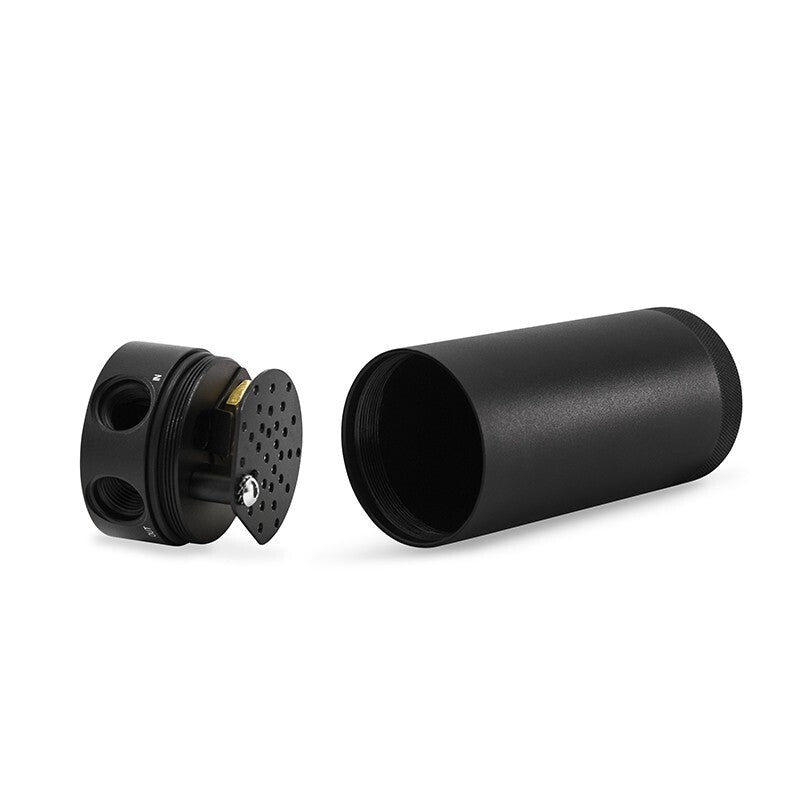

Add a layer of protection to your Gen 2 Mazda 3 MPS with the Mishimoto Baffled Oil Catch Can Kit. The MS3 might have been one of the pioneers in the North American hot-hatch movement, but like the rest of the direct-injected turbocharged engines of that era, it suffers from copious carbon buildup due to engine blow-by. The 2.3L MZR turbo has a unique issue with blow-by. It’s equipped with a top-mounted intercooler, which is prone to heat-soak, effectively baking all of the oil and fuel droplets into the heat exchanger.
With the Mishimoto Baffled Oil Catch Can Kit, those crankcase gases are intercepted before even reaching the intercooler. We also included our taller 7.5oz catch can to compensate for the increased levels of blow-by that the Mazdaspeed 3 experiences in colder weather. Also included in the kit are pre-formed hoses to ensure a simple and direct fit in your MS3. As with all of our products, the Mazdaspeed 3 Baffled Oil Catch Can Kit is covered under the Mishimoto Lifetime Warranty, keeping your 2.3L MZR Turbo blow-by free over the lifetime of the car.
- Direct fit for the 2006-2012 Mazda 3 MPS
- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
- Helps reduce carbon build-up on intake valves
- Patent pending billet 6061 aluminium sealed can sealed with Viton™ O-rings
- Installs in under 30 minutes
- Robust, application-specific bracket mounts the can in a serviceable location
- Includes pre-molded hoses for simplified installation
- Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase.
- Defends intake system and essential engine components from oil blow-by
- CNC-machined aluminium barbed fittings ensure a sturdy connection between lines and can
- Catch can has a 7.5 oz. capacity for longer serving intervals
- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable
- Inlet 1/2": 13mm
- Outlet 1/2": 13mm
- Drain Plug Thread Size: 3/8" NPT
- Capacity: 7.5 fl oz.
- Material: 6061 Aluminum
- Baffled: True
- Install Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
- (1) Large Baffled Oil Catch Can
- (1) Application Specific Mounting Bracket
- (2) Direct-Fit Hoses with Integrated Check Valve
- (4) Worm-Gear Clamps
- (2) 1/2" Aluminium Barbed Fittings
- Mounting Hardware
- Mishimoto Lifetime Warranty
- 2007-2013 Gen 2 Mazda 3 MPS BL
