Intercooler Kit Ford Focus ST 13-18

It's time to make your cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013-2018 Ford Focus ST.

Ford released their 2.0T EcoBoost powered Focus boasting the perfect combination of performance and practicality, however the intercooling system left something to be desired. While the piping did feature sections of aluminum, the restrictive diameter, not to mention the turbo muffler put a damper on the Focus STs performance potential.

We've replaced the hot-side pipe with mandrel-bent aluminum, both ditching the muffler and also opening up the diameter to allow a 26% better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone ensuring a long lasting connection on the hot-side, but also a soother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe kit grants a 21% increase in flow to and from the intercooler.

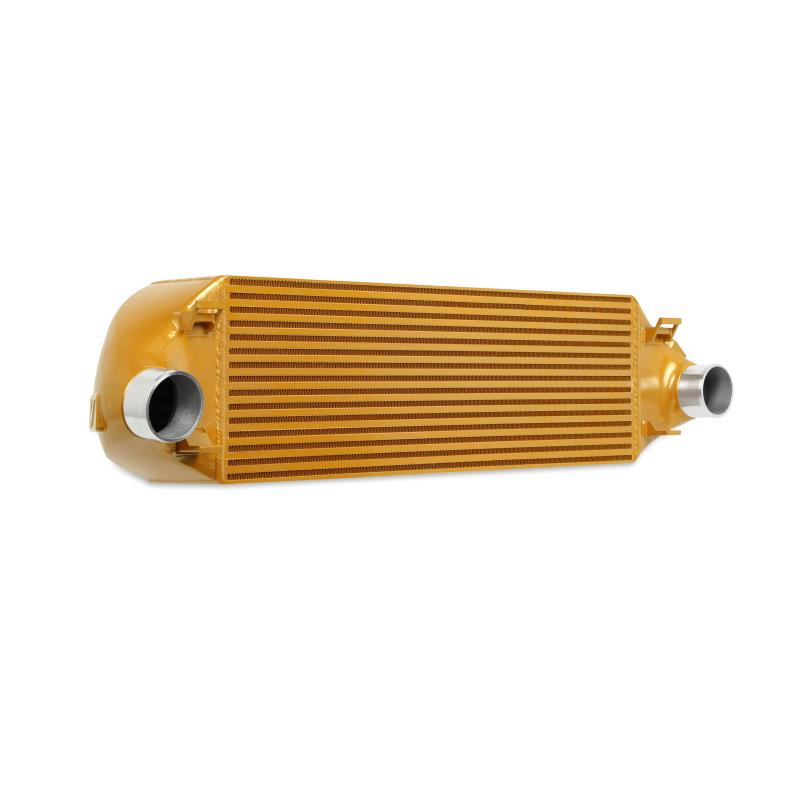

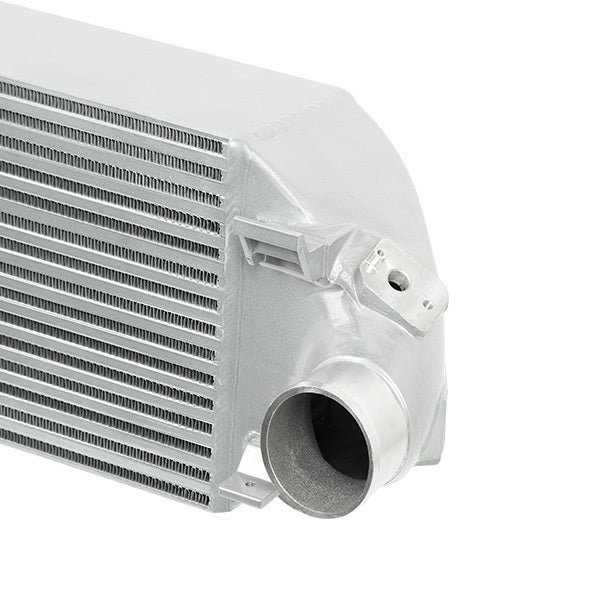

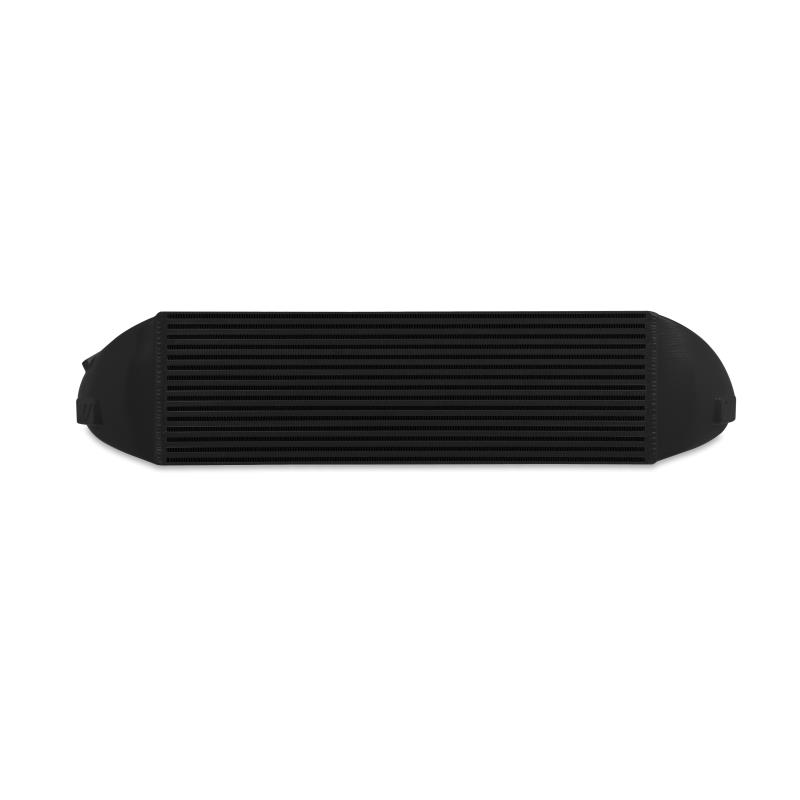

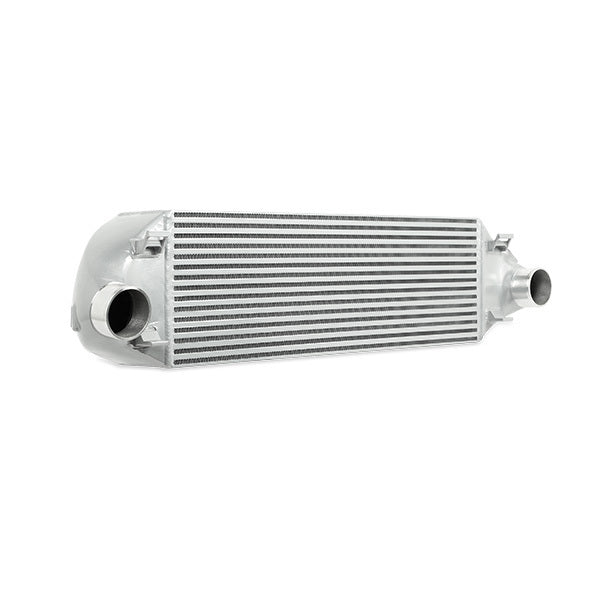

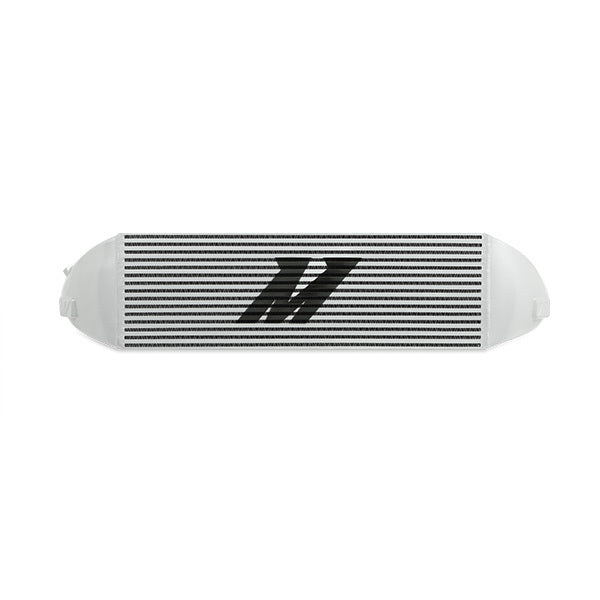

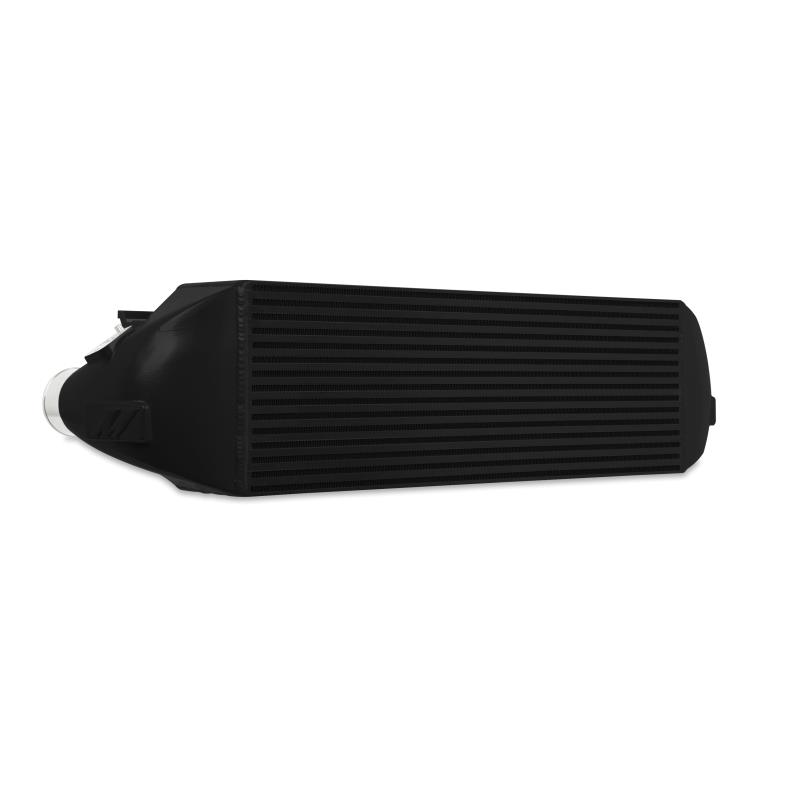

The piping isnt the only part of this kit that increases flow, the bar-and-plate construction opens up air channels within the core allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all aluminum construction also aids in heat dissipation, warding off the dreaded heat-soak under demanding driving conditions, and delivering properly cooled air through the STs intake manifold.

The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP. As always, this intercooler kit is covered under the Mishimoto Lifetime Warranty.

• Direct fit for the 2013–2018 Ford Focus ST
• 109mm thick intercooler design optimized for maximum flow
• 8 hp/ 10 tq gains when combined with other Mishimoto Focus ST parts
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Increases core size by 128% and fin surface area by 32%
• 10% increase in volume and 40% increase in flow over stock cold-side pipe
• 14% increase in volume and 26% greater flow than stock hot-side pipe
• Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
• Provision for both US and Euro MAP sensor
• No modification to front bumper and retains stock fog lights
• Pipes available in polished or wrinkle black powder-coating

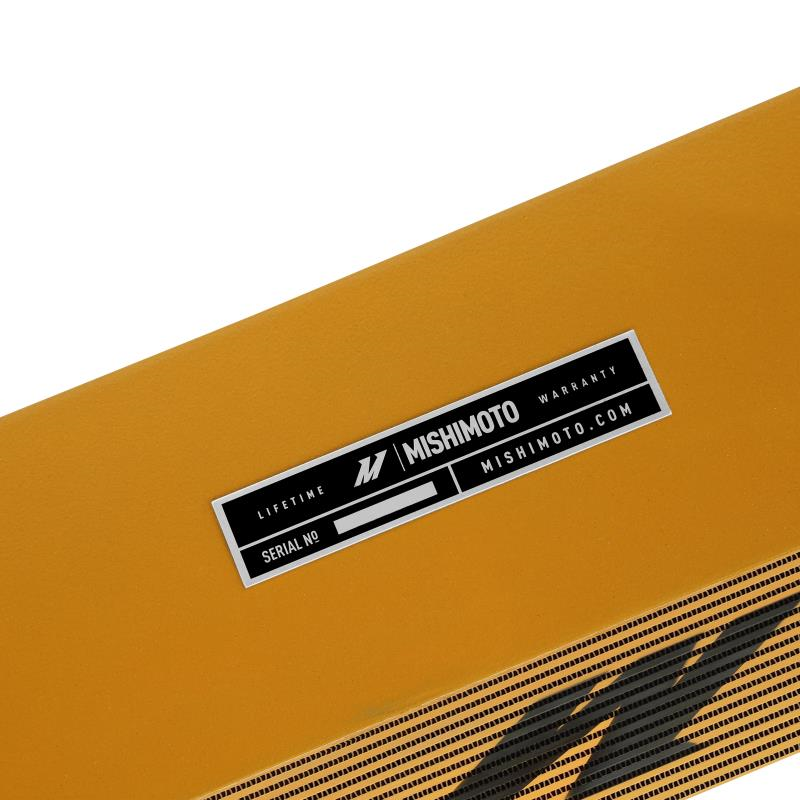

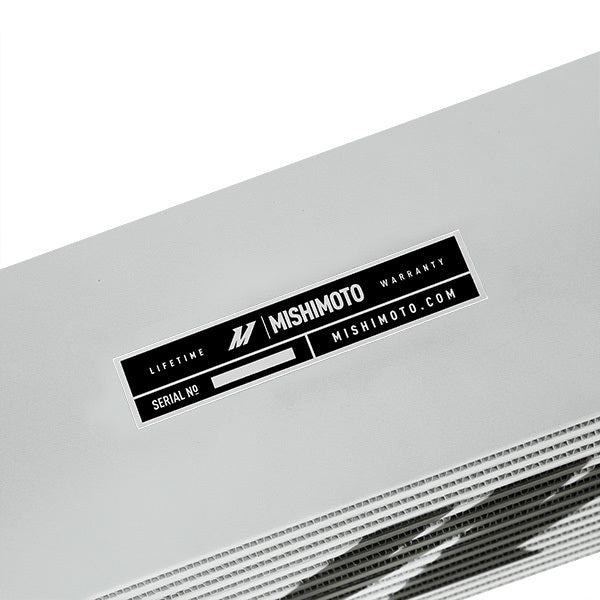

• Mishimoto Lifetime Warranty
• Mishimoto Lifetime Warranty
• Installation Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
• Cold-Side Intercooler Pipe Specs: 66 mm
• Hot-Side Intercooler Pipe Specs: 49 mm-66 mm
• Weight: 13.6
• Coating: Powder Coated
• Outlet: 63.5 mm

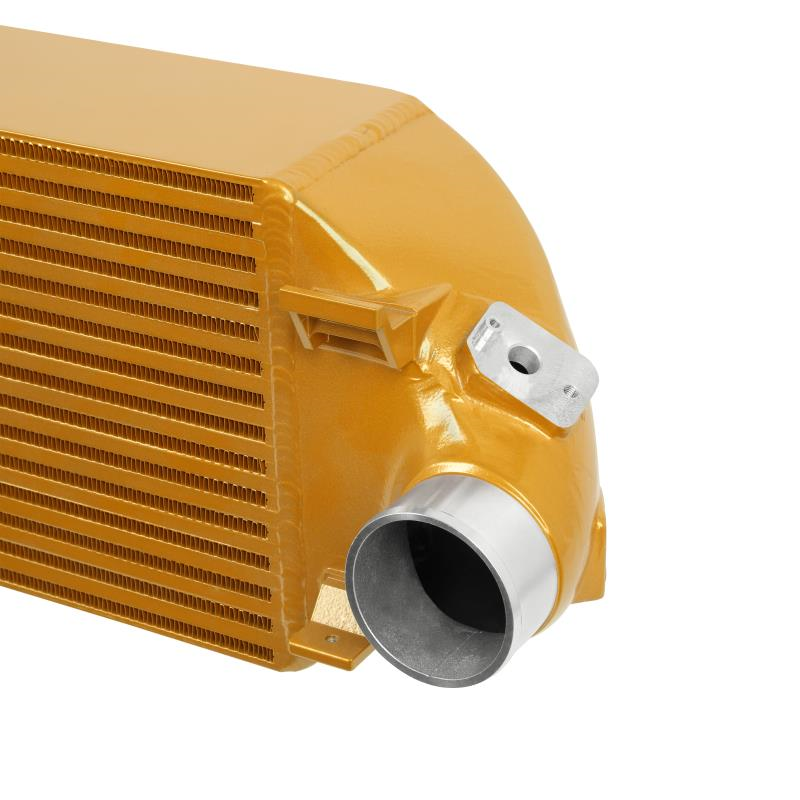

• Inlet: 63.5 mm

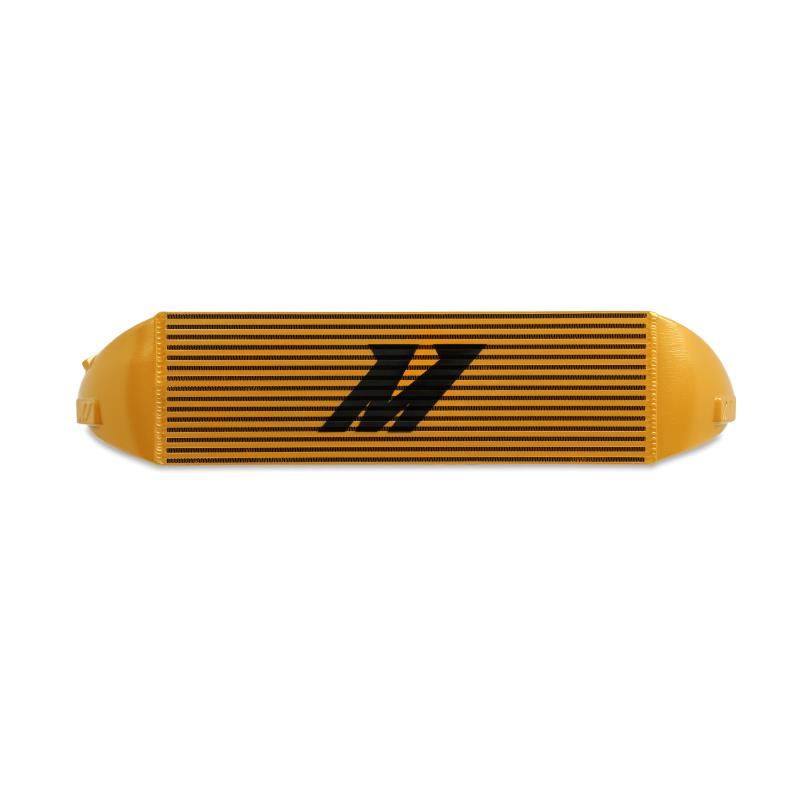

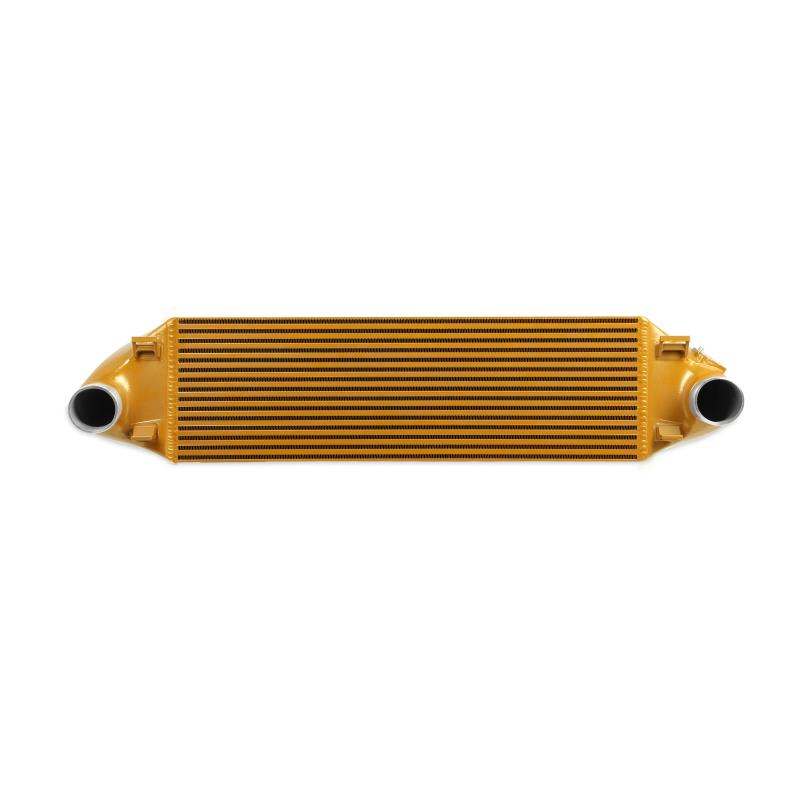

• Core Size: 663.5 mm x 109 mm x 209.5 mm
• Overall Width: 184 mm

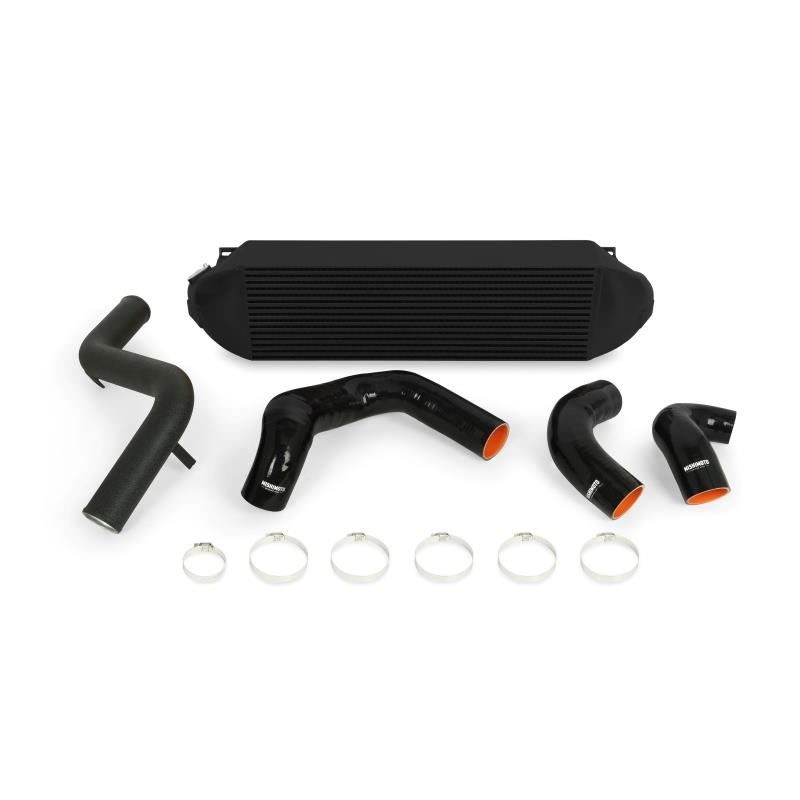

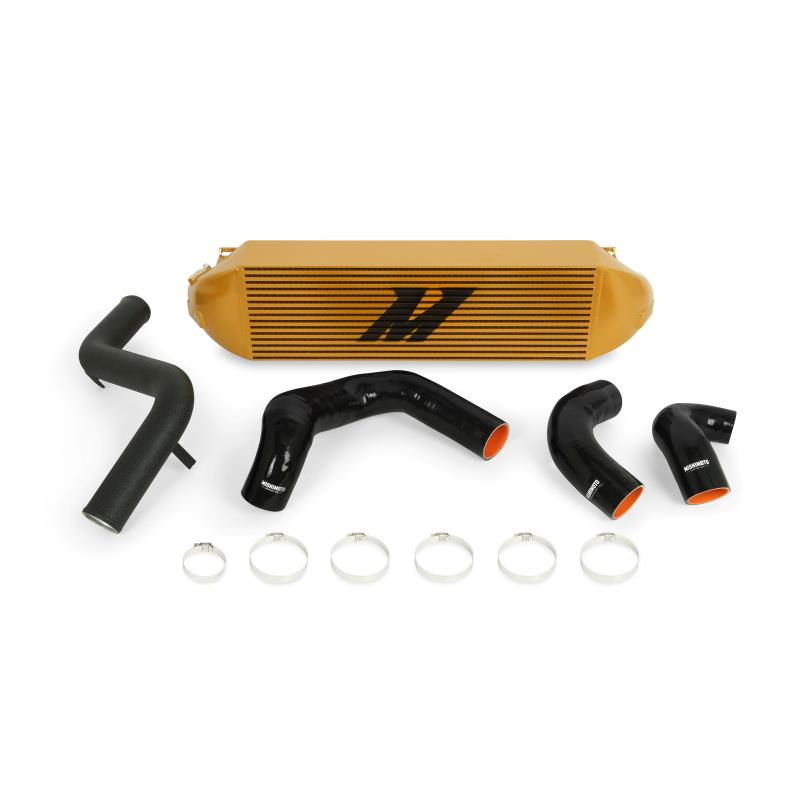

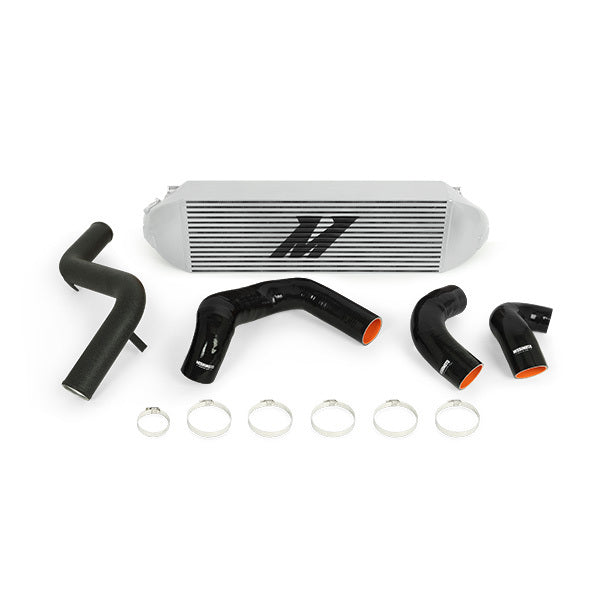

• (1) Mishimoto Intercooler
• (1) Aluminum Intercooler Pipe
• (2) Silicone couplers

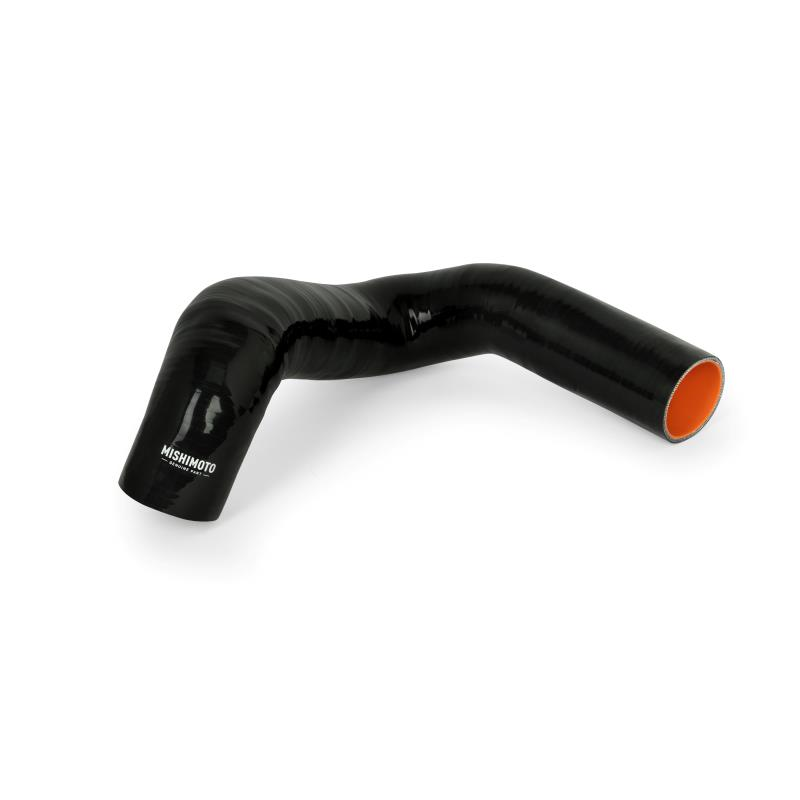

• (1) Silicone Pipe
• (6) High torque worm gear clamps
• Mishimoto Lifetime Warranty
• 2012+ Ford Focus ST MK III
