Intercooler Pipe Kit Audi A3, S3, TT/VW Golf TSi, GTi, R

Improve the flow of the charged air through your MK7 with the Mishimoto Intercooler Pipe Kit! The GTI has a long pedigreed history in the realm of hot-hatchbacks, especially when it comes to models powered with 4-cylinder turbo engines. The stock piping in Volkswagen’s star player, however, doesn’t quite live up to the hype. Full of bends, restrictive diameters, and constructed from degradation-prone materials, the stock charge pipes are a restriction for your MK7, especially when cranking up the boost.

Here at Mishimoto, we improved on the intercooler piping system so that you can make your hot-hatch even hotter. We started with replacing all of the plastic and rubber with a more robust construction of mandrel-bent aluminum, and 5-layer, heat-resistant silicone couplers to ensure a sturdy and long-lasting connection to and from the intercooler. We also reduced the number of bends on top of increasing the piping diameter to 2.75 inches, together equating to a 30% increase in airflow, making these the perfect combination with an aftermarket tune.

The Mishimoto MK7 Intercooler Pipe Kit is available in a polished or wrinkle black finish to suit the style of your MK7. We also stand behind the craftsmanship of our products which is why this piping kit also includes the Mishimoto Lifetime Warranty.

• Direct fit for the 2015+ MK7 Volkswagen GTI and Golf R

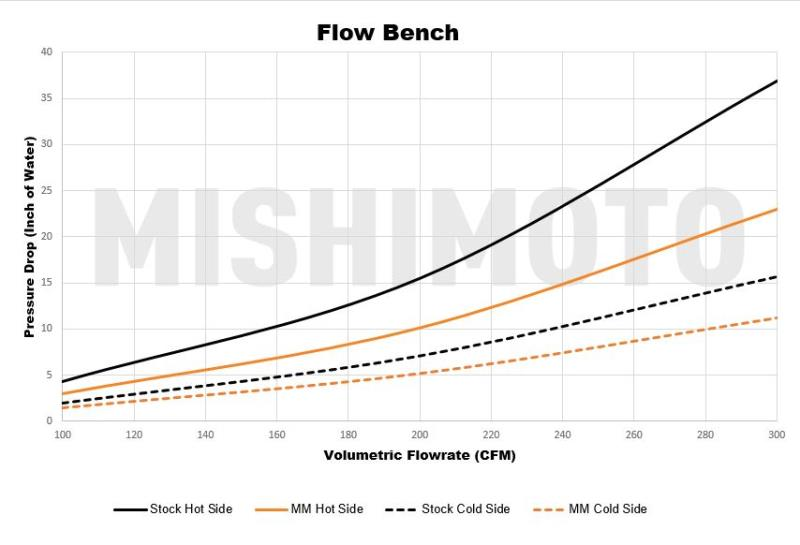

• 30% increase in flow over stock components
• 10% increase in average diameter over factory piping
• Increases reliability under high boost conditions
• Mandrel-bent aluminum piping

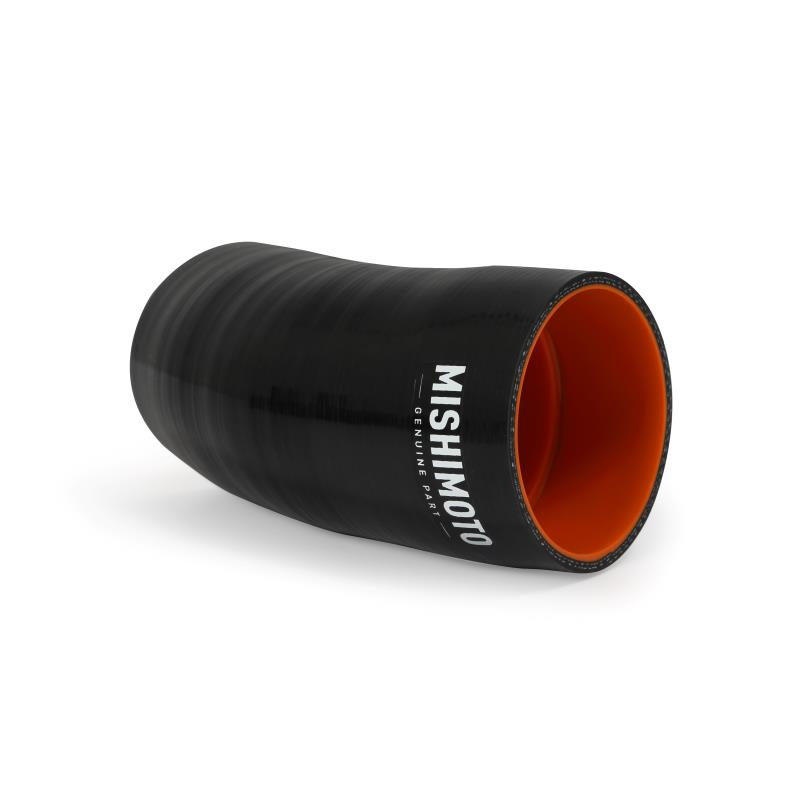

• Durable 5-layer silicone couplers

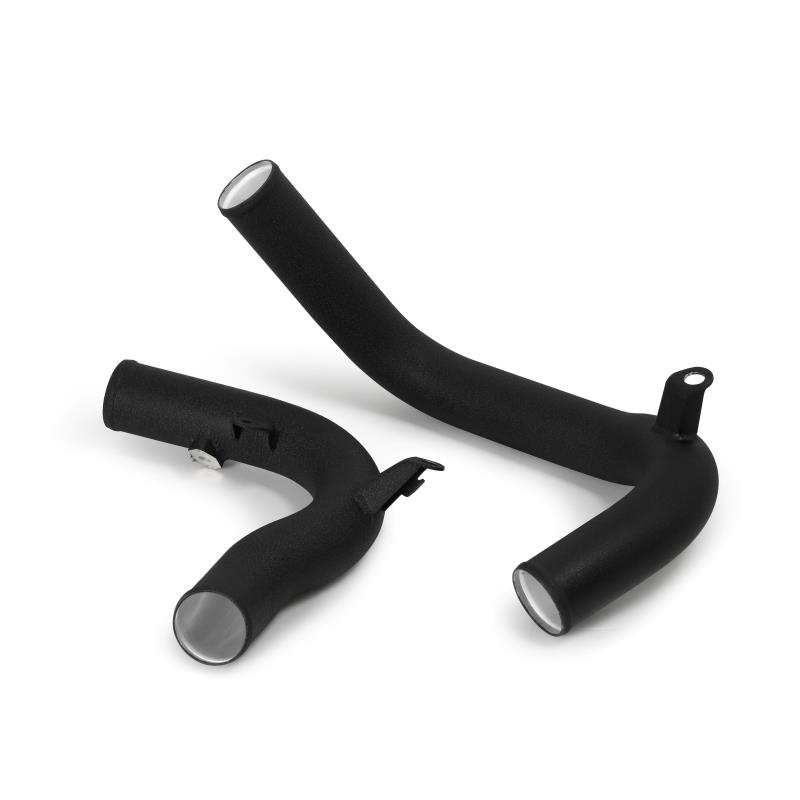

• Available in polished or wrinkle black finishes
• Mishimoto Lifetime Warranty
• Pipe Diameter: 63.5mm
• Chassis Codes: MK7 / 8V / FV
• Installation Torque Specs: 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

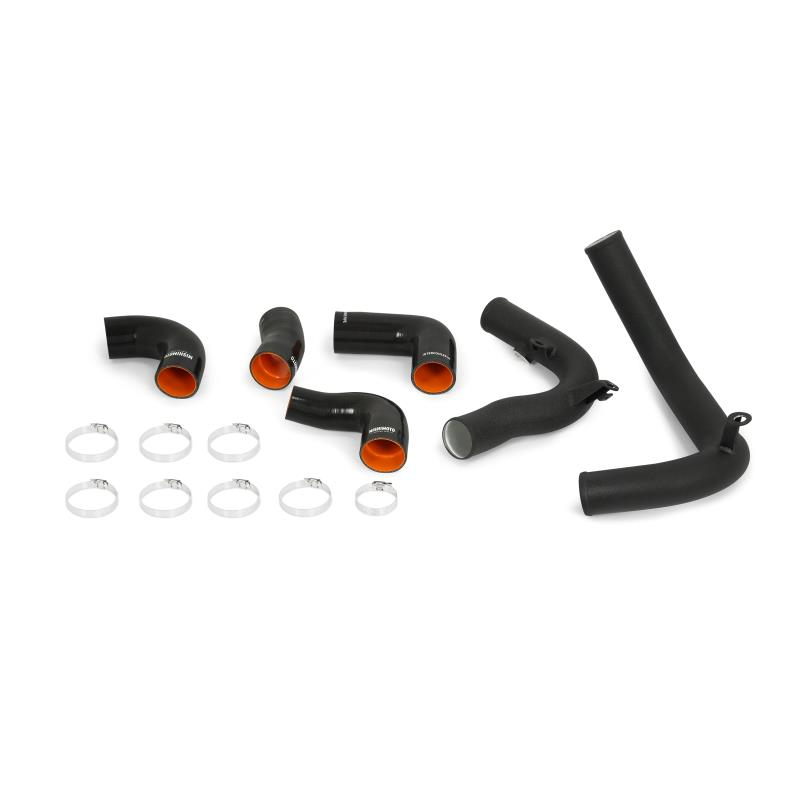

• (1) Hot-Side Intercooler Pipe
• (1) Cold-Side Intercooler Pipe
• (4) Silicone Couplers
• (8) High-Torque Worm Gear Hose Clamps
• Mishimoto Lifetime Warranty
• 2015+ Volkswagen Golf TSI
• 2015+ Volkswagen GTI
• 2015+ Volkswagen Golf R
• 2013+ Audi A3/S3
• 2014+ Audi TT/TTS

SPECIAL NOTE

This kit is compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only. Hot-side intercooler piping may not fit properly on vehicles equipped with 7-speed DSG transmissions.
