Oil Cooler Kit BMW E46 M3

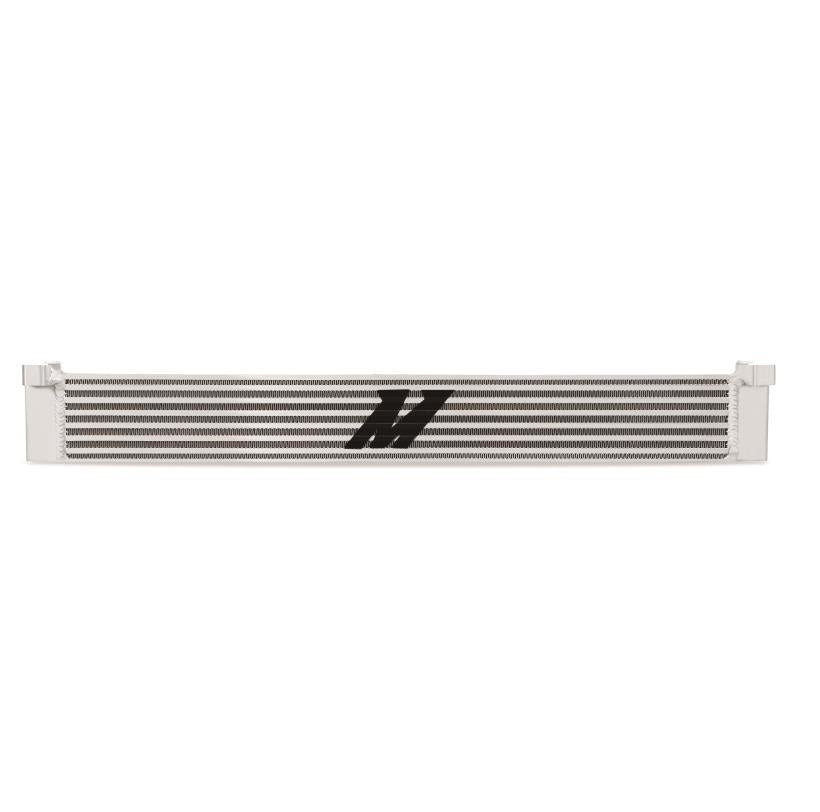

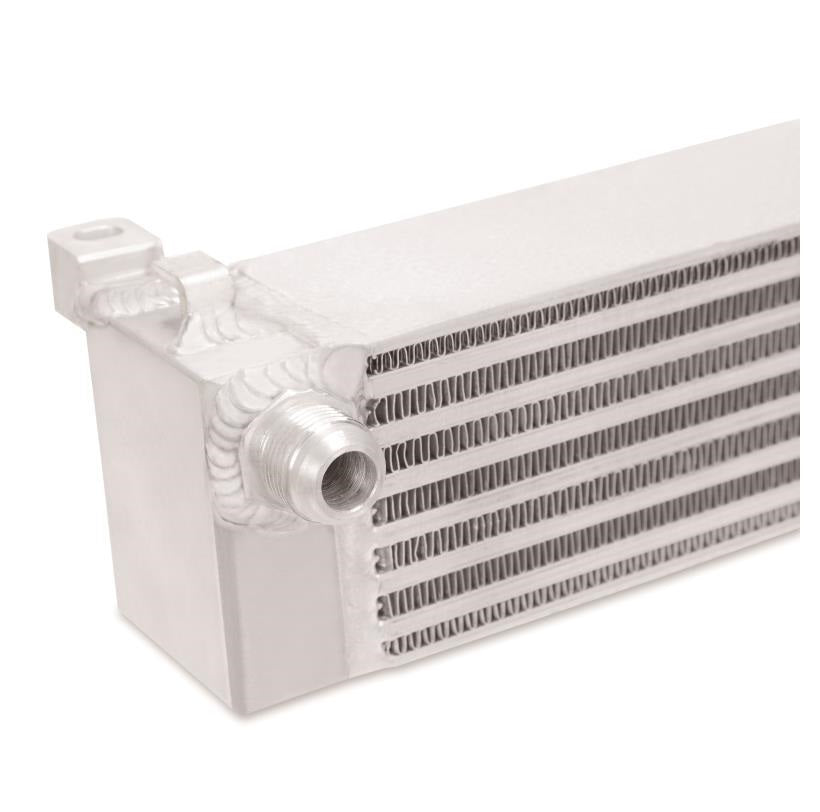

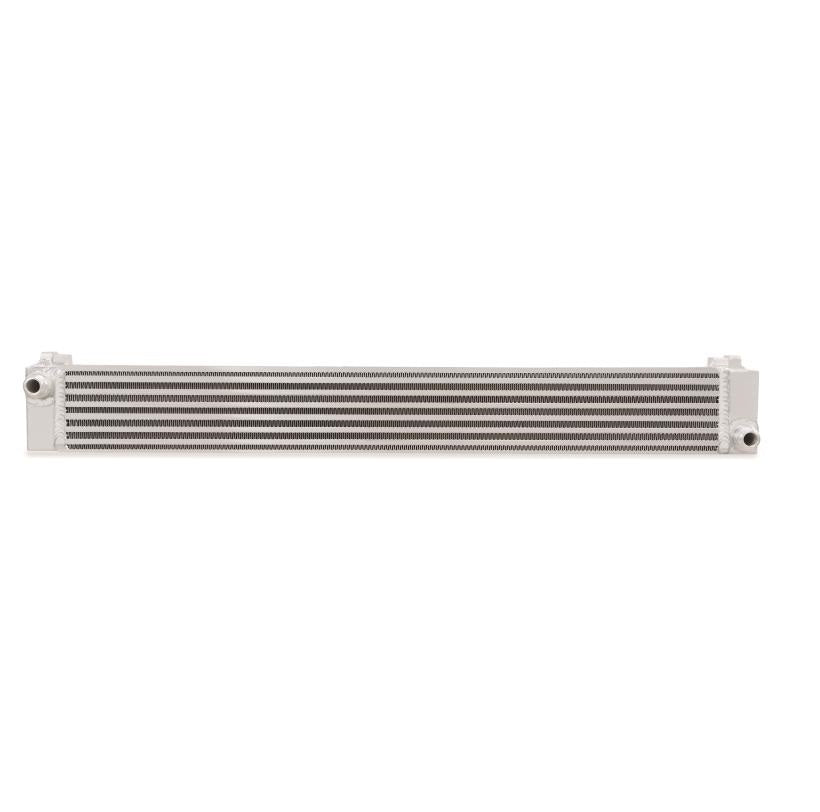

The S54 is an incredible feat of engineering. Smooth power delivery, individual throttle bodies, and an 8,000 rpm redline make for an unforgettable driving experience. As with any BMW, maintaining optimal oil temperatures is key to extending the life of your vehicle and ensuring that you're getting an unparalleled driving experience. As many of these vehicles see frequent track time, the team at Mishimoto decided to develop a performance oil cooler kit that would not only provide improved durability, but also deliver the power needed for track driving. The result: an extremely efficient core that provides a proven 30°F (16.7°C) drop in oil temperature. With an increase in core thickness of 110%, this oil cooler kit increases your oil capacity by 0.44 qt. The oil cooler end tanks, cast from a single piece of aluminum and TIG-welded to the core, have been designed for maximum reliability, giving you the confidence you need to push your E46 M3 to the limits.

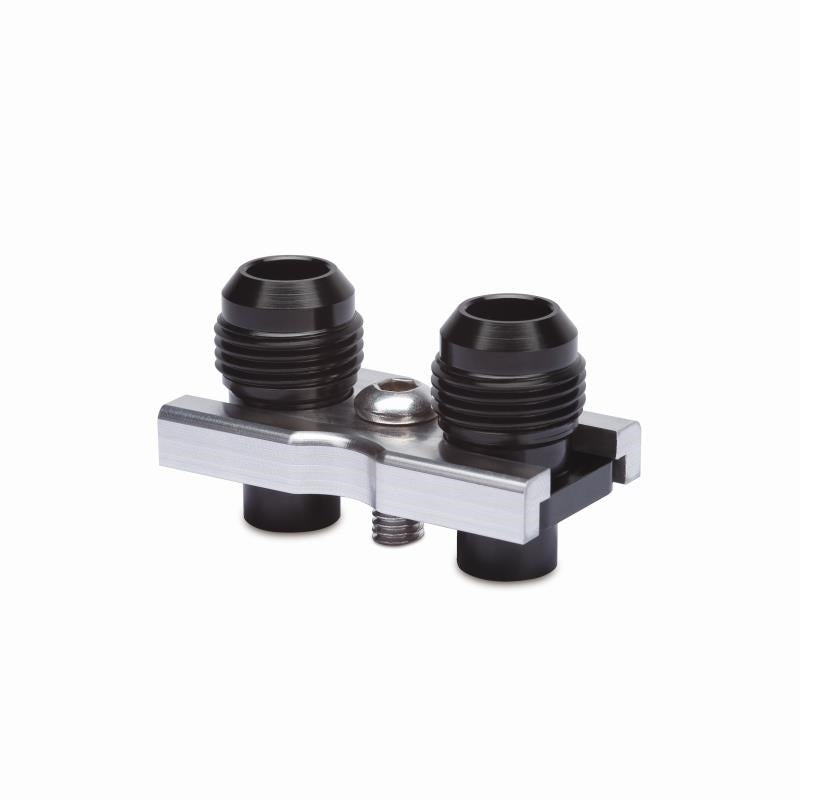

This oil cooler kit is designed as a complete bolt-in fit, requiring no modification to work with the stock radiator or the Mishimoto BMW E46 Performance Aluminum Radiator. To ensure a complete direct-fit, Mishimoto engineers have designed a fully CNC-machined 6061 aluminum and 303 stainless steel BMW E46 Oil Line Fitting Kit, which makes the removal of the stock hard lines and installation of stainless steel braided lines a simple task.

This kit includes preassembled stainless steel lines with -10AN fittings to help direct the oil to and from the cooler, as well as a black Mishimoto Oil Line Stay to keep your lines from rubbing. As with all our products, the Mishimoto E46 M3 Oil Cooler Kit includes the Mishimoto Lifetime Warranty

• Direct fit for the BMW E46 M3
• Natural CNC-machined finish
• Mishimoto Lifetime Warranty
• Reduces oil temperatures by 30°F (16.7°C)
• 10 psi reduction in pressure loss
• One-piece billet end tanks for maximum reliability
• Increases oil capacity by 0.44 qt
• Premade stainless steel braided oil lines with durable -10AN fittings
• Includes 100% CNC-machined 6061 aluminum -10AN BMW E46 Oil Line Fitting Kit
• Mishimoto Oil Line Stay included to prevent lines from rubbing
• Fits with stock and Mishimoto radiators
• Material - 6061 Aluminum
• Core Height - 3.02"
• Cooler Contruction - Bar-and-Plate
• Core Thickness - 2.5"
• Core Length - 23.62"
• Fitting Size - -10AN
• Tank Wall Thickness.16" (4mm)
• Engine Codes - S54
• Chassis Codes - E46
• Install Torque Specs - 10 ft/lbs for Oil Line Fitting Kit bolt.
• Caution - It is the installer's responsibility to check all line fittings and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
• Increase In Oil Capacity - 0.44
• Temp Difference - 30°F
• Overall Height - 26.1"
• Overall Length - 3.4"
• Overall Width - 4.3"
• Core Size - 23.62" x 3.02"
• Inlet - -10AN
• Outlet - -10AN
• Also Fits - 2001-2006 BMW E46 M3
• (1) Mishimoto Oil Cooler w/ -10AN Fittings
• (1) Mishimoto Oil Line Fitting Kit
• (1) 1' 8" Stainless Steel Braided Hose with 45° and 45° -10AN Fittings
• (1) 3' 5" Stainless Steel Braided Hose with 45° and 90° -10AN Fittings
• (1) Mishimoto Oil Line Stay, Black
• (2) M6 x 1.0 x 16mm Button-Head Bolts (for installation with Mishimoto radiator)
• Mishimoto Lifetime Warranty
• 2001-2006 BMW E46 M3
