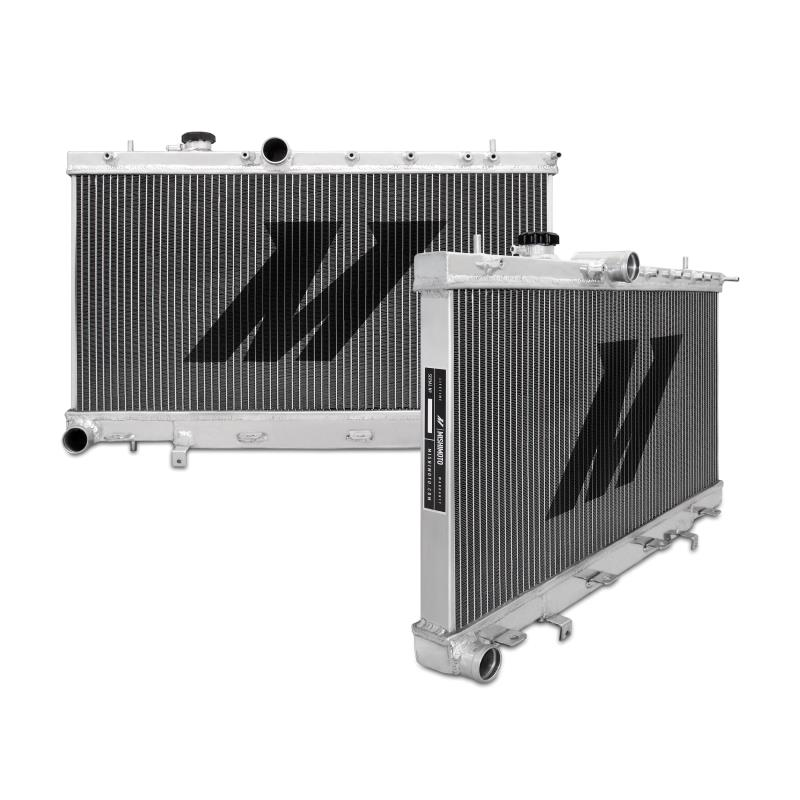

Performance Aluminium Radiator X-Line Subaru WRX/STi 01-07

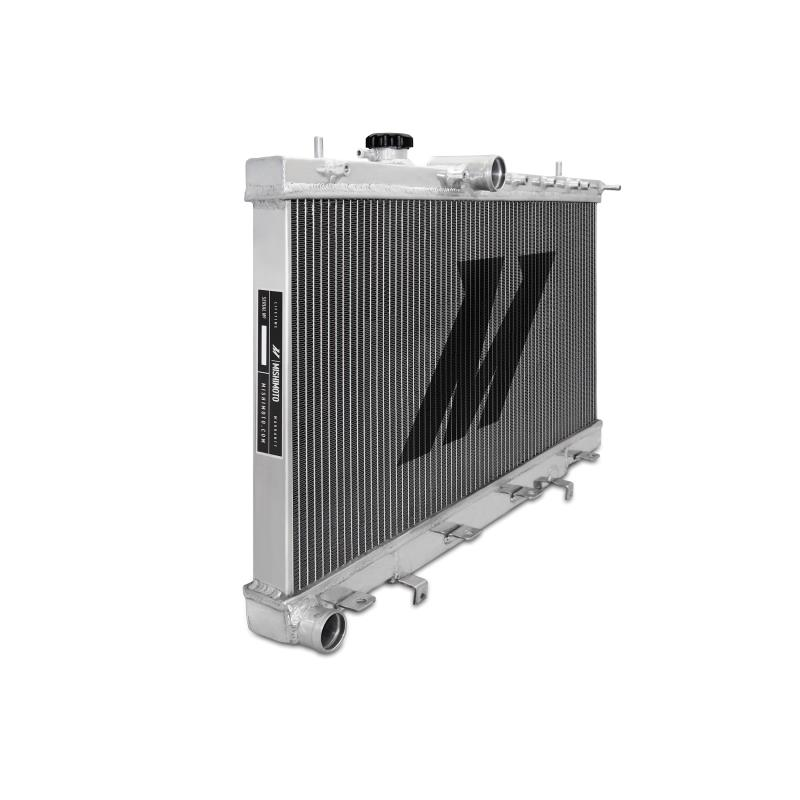

When properly maintained, the Subaru flat-four is well known for its substantial power and impressive reliability. Proper regulation of coolant temperature is key to extending the life of your EJ-powered Subaru. Highly modified turbocharger setups and aggressive driving can result in high temperatures, which increases wear on internal engine components. Mishimoto’s X-line radiator is engineered specifically for the 2001–2007 Subaru WRX/STI and features a large three-row core and full aluminum construction. This design yields optimal temperatures even in the most demanding environments. This radiator also features a 100% brazed aluminum core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity. The large three-row core enhances surface contact, resulting in improved efficiency, improved heat transfer, and lower engine coolant temperatures for your Subaru.

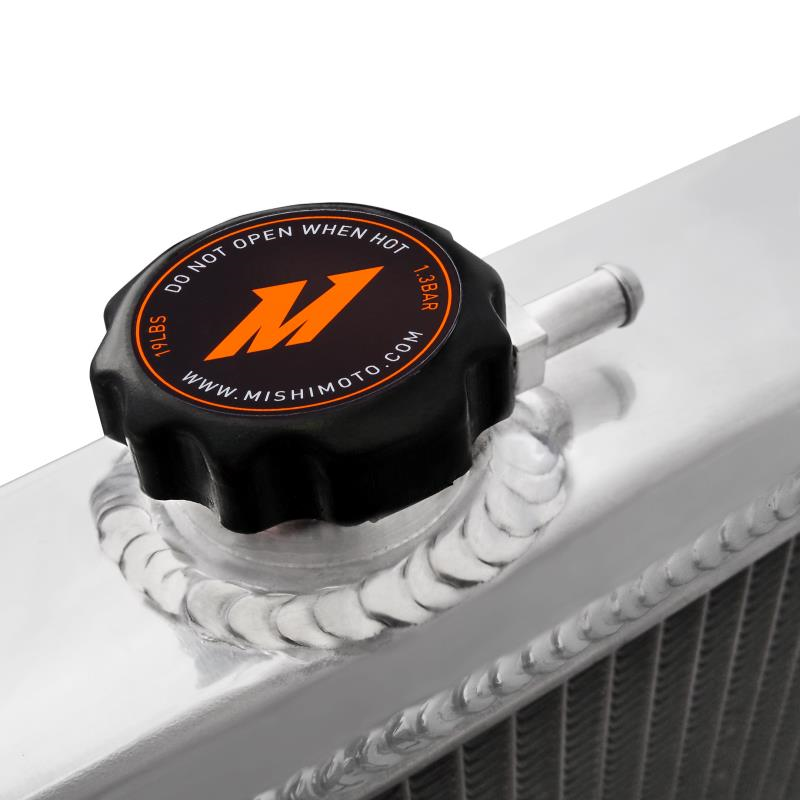

The Mishimoto Subaru WRX/STI radiator includes a Mishimoto 1.3 Bar Radiator Cap which effectively raises the boiling point of coolant to create a safer and more efficient system. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug that removes metal fragments circulating in the coolant system, thus further protecting your engine. Whether you are looking for a reliable stock replacement radiator or a heat exchanger efficient enough for track abuse, the Mishimoto Subaru WRX/STI X-line Performance Aluminum Radiator is an ideal choice. As with all our products, this radiator is backed by the Mishimoto Lifetime Warranty.

• Large three-row aluminum core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments
• Industry-largest 2 inch thick core for ultimate cooling efficiency
• Full aluminum construction for increased durability
• Mishimoto Lifetime Warranty
• Material - Aluminum
• Chassis Codes - GD
• Engine Codes - EJ205 / EJ255 / EJ257
• Overall Height - 28.4"
• DPI - 2703
• Drain Plug Length - 0.047"
• Drain Plug Thread Size - (M16) .06
• Overall Length - 17.2"
• Fill Neck Thickness - 0.12"
• Tank Wall Thickness - 0.08"
• Outlet - 1.5"
• Rows - 3
• Inlet - 1.5"
• Dual Pass - No
• Overall Width - 2.5"
• Core Length - 13.54"
• Core Height - 27.24"
• Core Size - 13.54" x 27.24"
• Core Thickness - 2"
• Fill Neck - 1.22"
• Mishimoto Radiator
• Mishimoto Radiator Cap
• 1/16" NPT Plug
• Fan Mounting Hardware
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

• 2001-07 Subaru WRX

• 2002-07 Subaru WRX STi
