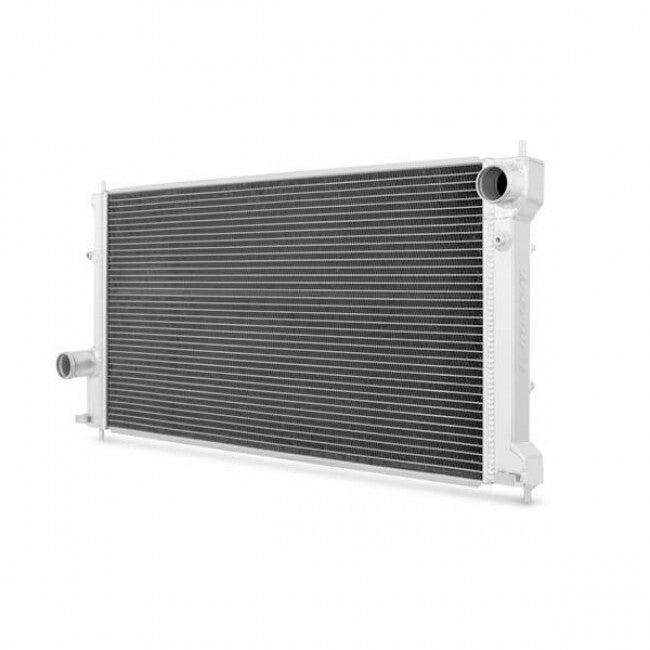

Performance Aluminum Radiator Subaru BRZ/Toyota 86

The Subaru BRZ is the perfect car for tearing up back roads or hitting the autocross course. Aggressive driving results in increased engine temperatures necessitating an effective solution for keeping your flat four cool. Mishimoto has the perfect upgrade, the Subaru BRZ performance aluminum radiator, to eliminate rising temperatures. The Mishimoto BRZ radiator features all-aluminum construction with TIG-welded end tanks and a 100% brazed aluminum core. This radiator is constructed from high-quality aircraft aluminum with a polished finish for the perfect combination of performance and style. The Mishimoto BRZ radiator is precision engineered for flawless drop-in fitment while providing increased cooling capacity and efficiency. As with all our products, this radiator includes the Mishimoto lifetime warranty.

• Increased cooling capacity
• Direct fit for the FR-S / BRZ
• 100% brazed aluminum core
• TIG-welded to perfection
• Lifetime warranty
• Material - Aluminum
• Note - This radiator is only compatible with a manual transmission.
• Chassis Codes - ZC6 / ZN6
• Engine Codes - FA20 / 4U-GSE
• Fits - 2013+ Subaru BRZ / 2013+ Scion FR-S / 2013+ Toyota GT86
• Overall Height - 30.13"
• Drain Plug Thread Size - M12 x 1.5
• Overall Length - 16.25"
• Tank Wall Thickness - 0.08"
• Outlet - 1.57"
• Rows - 2
• Inlet - 1.57"
• Coolant Capacity - 2.15
• Dual Pass - No
• Overall Width - 4.3"
• Core Length - 25.6"
• Core Height - 14"
• Core Size - 25.60" x 14.00"
• Core Thickness - 1.37"
• Mishimoto Radiator
• Additional Mounting Hardward
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty
• 2012+ Subaru BRZ
• 2012+ Toyota 86 GT
• 2012+ Toyota 86 GTS

Overall size
30.13" x 16.25" x 4.30"

Core size
25.60" x 14.00"

Rows
2

Inlet
1.57"

Outlet
1.57"

Core thickness
1.37" (34mm)

Tank wall thickness
.08" (2mm)

Drain plug thread size
M12 x 1.5mm

DPI
4145
