Plug-n-Play Performance Aluminium Fan Shroud Kit Subaru WRX/STi 01-07

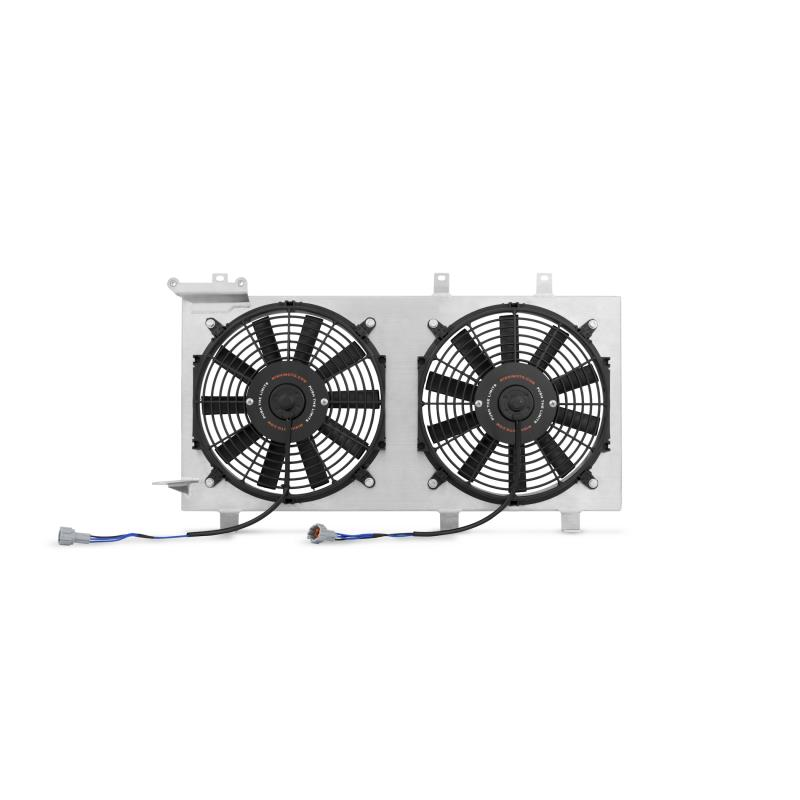

A failed fan can result in overheating and potential engine damage. Protect your flat four with the all new Mishimoto direct-fit aluminum fan shroud engineered specifically for the 2001–2007 Subaru WRX/STI. The Mishimoto Subaru fan shroud kit includes pre-wired factory pigtails for a plug-and-play connection and true direct fit, which eliminates the need to splice into your body harness. This fan shroud is constructed from lightweight aircraft-quality TIG-welded aluminum and has a brushed finish. It utilizes two high-flow 12” fans, which are highly efficient for reducing engine-bay heat and coolant temperatures. The Mishimoto Subaru fan shroud also includes provisions for mounting the factory overflow bottle to the shroud for a hassle-free installation. This fan shroud kit is covered by the Mishimoto Lifetime Warranty, so you know quality is guaranteed.

• This fan shroud is compatible with the stock overflow tank, fan plugs, and stock radiator.
• Please purchase two (2) plug adapters (P/N 45128FE000) from your dealership when used with 01-03 vehicles.
• Electric fans already come attached to the shroud.
• Direct plug-n-play for 2004–2007 WRX/STI

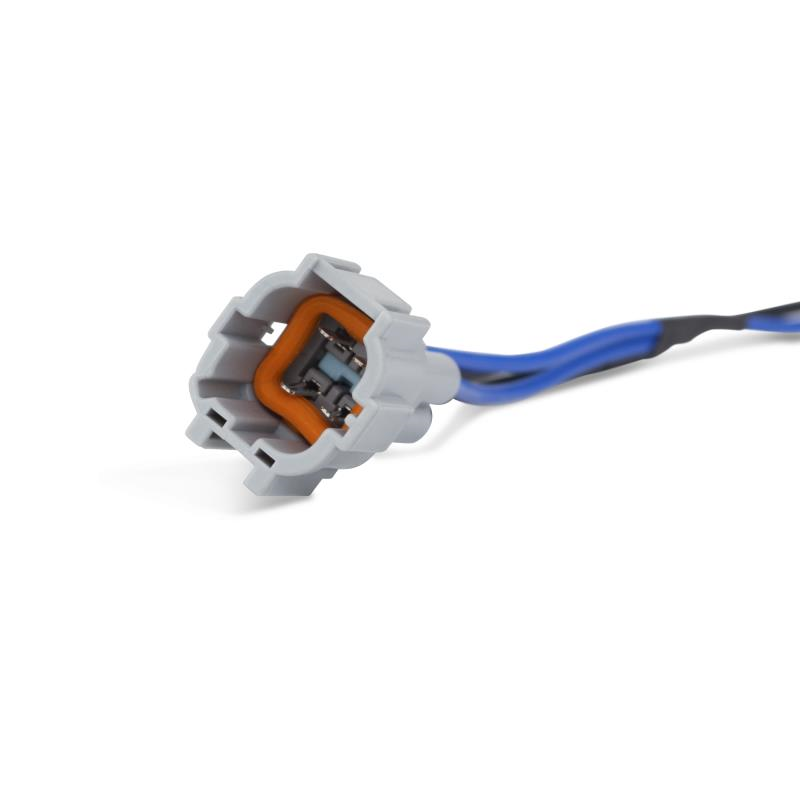

• Includes factory plugs for easy installation
• Fits both stock and Mishimoto radiators
• Accommodates stock coolant overflow
• Maximizes airflow
• Includes two fans, each over 900 CFM
• Includes all mounting hardware
• Brushed aluminum finish
• Mishimoto Lifetime Warranty
• Note - This fan shroud is compatible with the stock overflow tank, fan plugs, and stock radiator.
• Please purchase two (2) plug adapters (P/N 45128FE000) from your dealership when used with 01-03 vehicles.
• Electric fans already come attached to the shroud.
• Weight - 7.75 lbs
• Width - 3.5"
• Length - 19.69"
• Height - 16.54"
• CFM - 2300
• Chassis Codes - GD8
• Engine Codes - EJ205 / EJ255 / EJ257
• Aluminum Fan Shroud

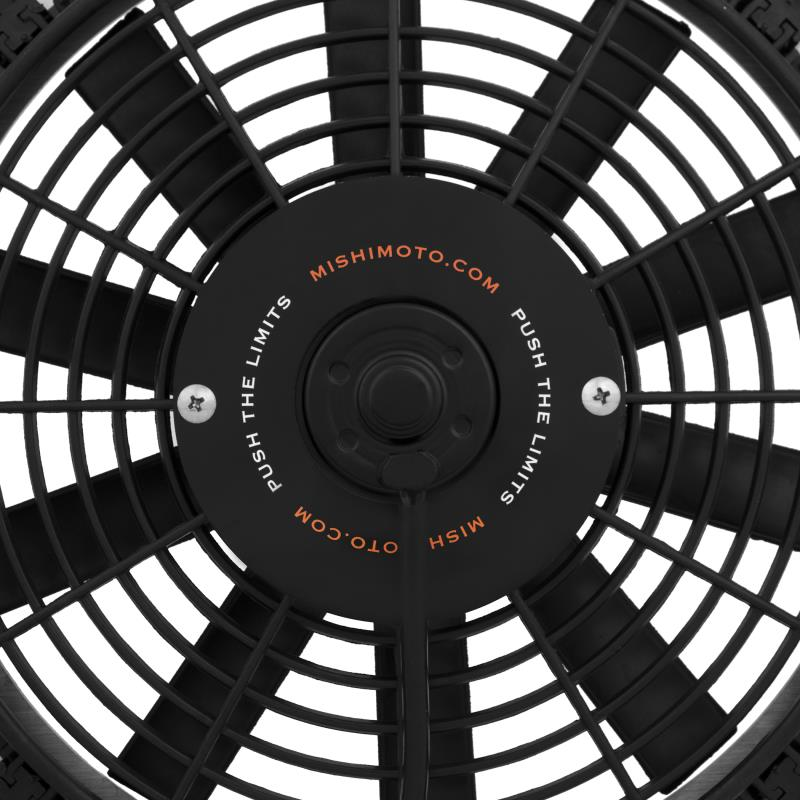

• (2) 12" Mishimoto slim electric fans with stock style connectors
• (5) M6 x 1.00 Screws
• (3) M8 x 1.25 Screws
• (3) M8 x 1.25 Nuts
• 2001-2007 Subaru WRX
• 2002-2007 Subaru WRX STi
