Mishimoto

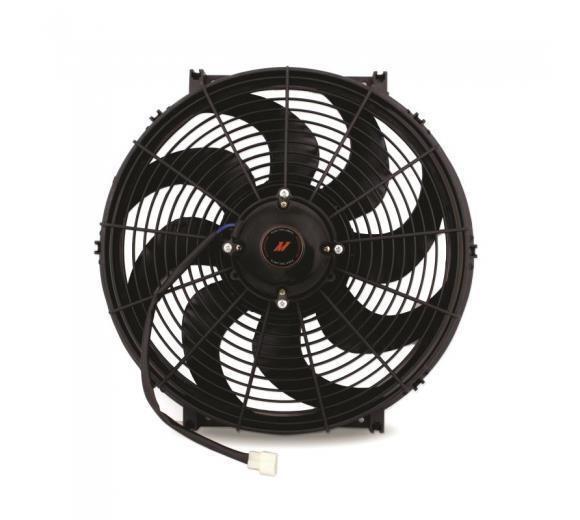

Race Line, High-Flow Fan, 16"

$469.95
Description

Provide your radiator with the maximum amount of airflow with our new 16" Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 2200 CFM of airflow to cool the largest and most powerful of engines! Depending on your application, this fan can also be reversed and used in front of your radiator.

  • High-flow fan provides increased airflow

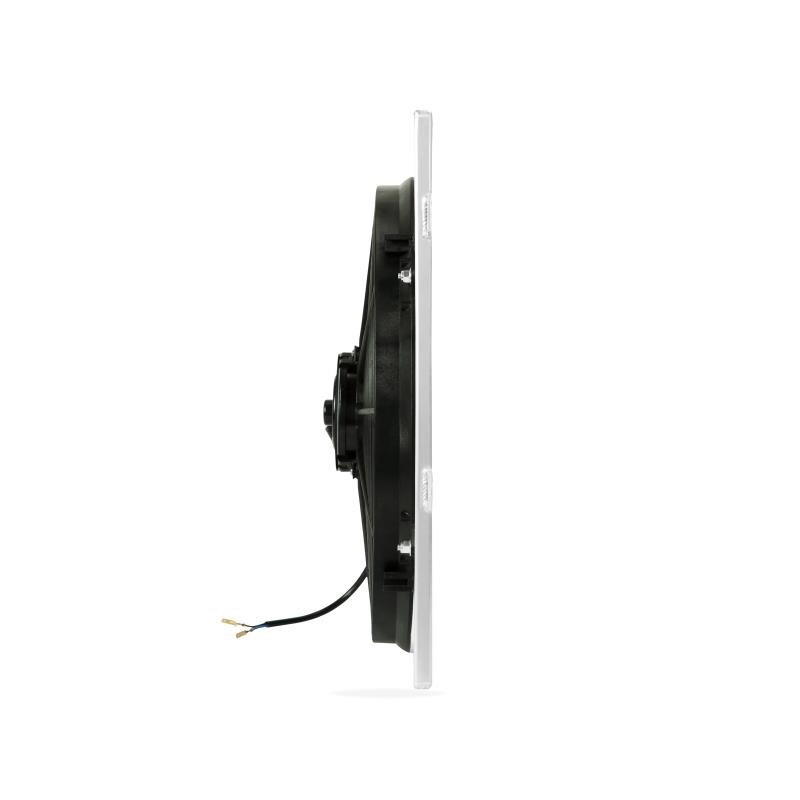

  • Compact design with a housing diameter of 16" and an overall thickness of 4.35" provides sufficient clearance in the engine bay
  • Universal fitment
  • Many sizes available
  • Mishimoto Lifetime Warranty
  • Type of Ends - Yazaki Tab Terminal
  • Material - Plastic
  • Note - This fan will not fit with the Mishimoto Electric Fan Mounting Kit.
  • Color - Black
  • Normal Current (amps) - 18
  • Volts - 12
  • Housing Diameter - 16
  • Blade Diameter - 387
  • Overall Thickness - 4.35
  • Reverse - Yes
  • Blade Style - Curved
  • Inrush Current (amps) - 22.1
  • # of Blades - 8
  • Fan RPM - 2000
  • Fan Diameter - 16
  • Overall Depth - 110
  • CFM - 2200
  • Mishimoto Fan
  • Mishimoto Lifetime Warranty
  • Universal Part
