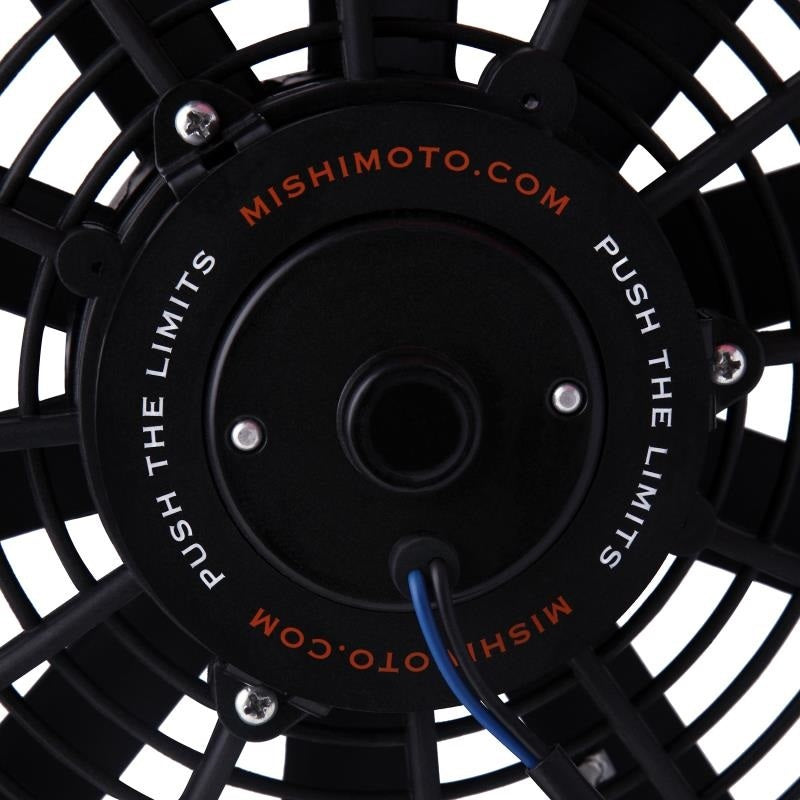

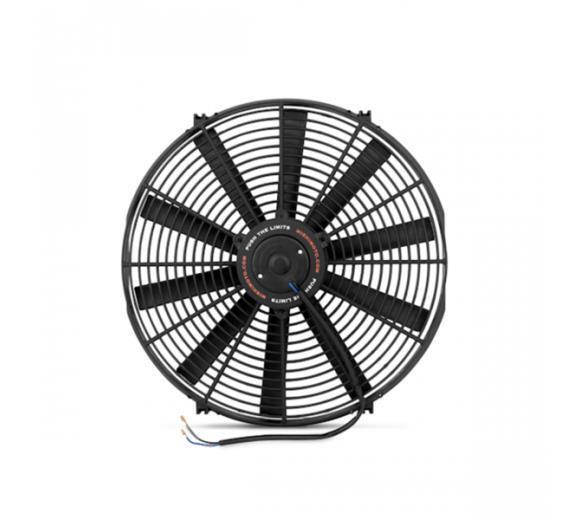

Slim Electric Fan 16"

This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

• High-flow fan provides 1850 cfm of airflow
• Universal fitment

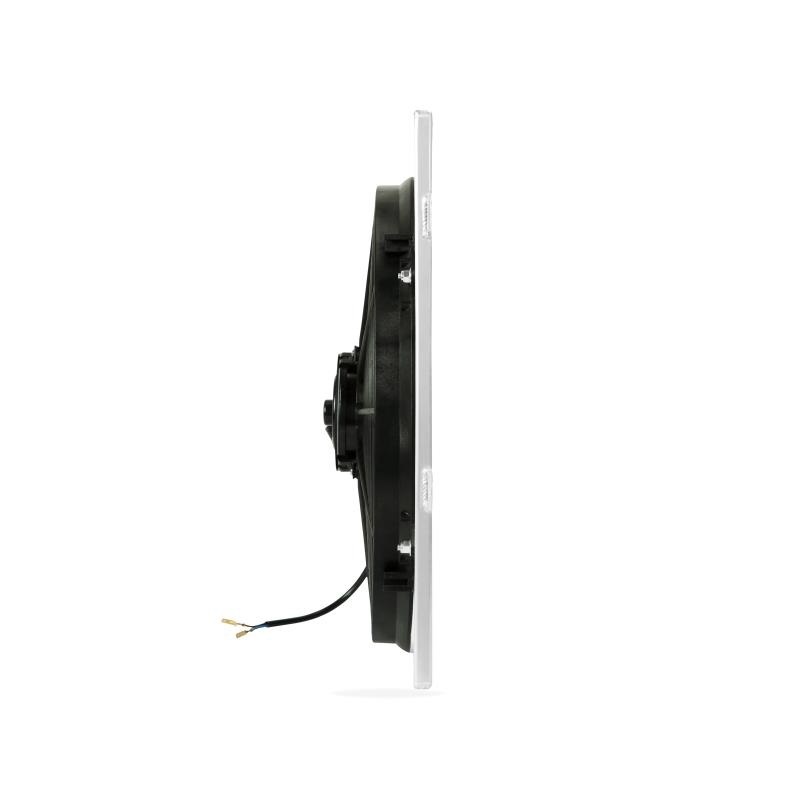

• Compact design with a diameter of 16" and an overall thickness of only 2.87" provides increased engine bay space
• Mishimoto Lifetime Warranty
•

• Type of Ends - Female Two-Prong Clip Plug
• Material - Plastic
• Air Temp While Tested - 72°F
• Color - Black
• Volts - 12
• Blade Diameter - 386
• Overall Thickness - 2.9"
• Reverse - Yes
• Blade Style - Curved
• Inrush Current (amps) - 34
• # of Blades - 10
• Fan RPM - 1800
• Fan Diameter - 16
• Overall Depth - 73
• CFM - 1850
• Mishimoto Fan
• Mishimoto Lifetime Warranty
• Mishimoto Fan
• Limited Lifetime Warranty
• Universal Part

CFM
1850

Fan Diameter
385mm

Fan RPM
1800

Number of Blades
10

Inrush Current (Amps)
34

Blade count
10

Blade style
Straight

Motor can run in reverse
Yes

Type of ends
Universal Clip

blade diameter
15.375

housing diameter
16.75

Normal Current (Amps)
7.18

Voltage
12

Air Temp While Tested
72°F
